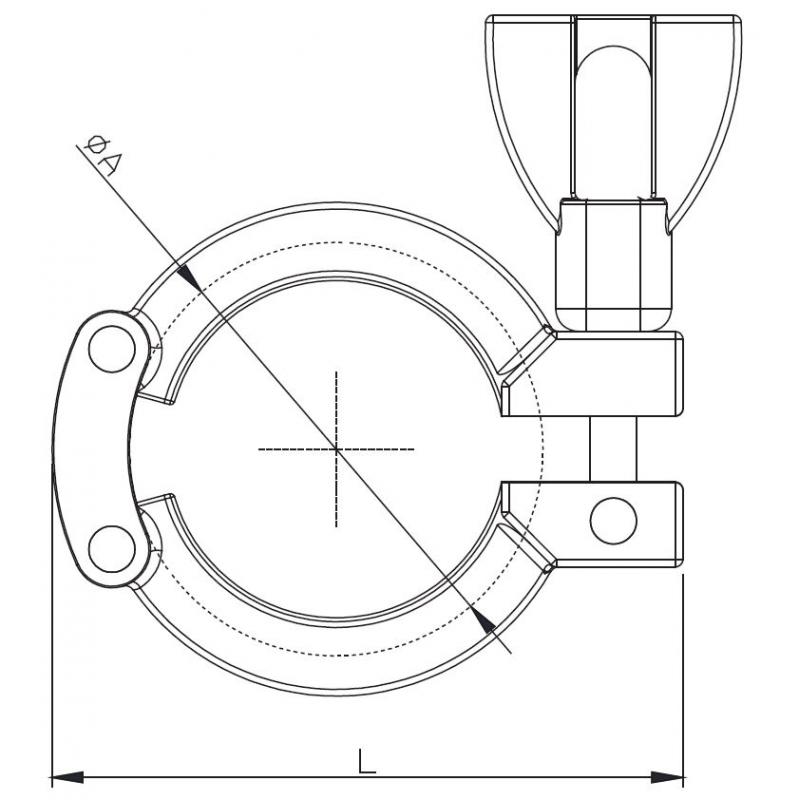

- DOUBLE PIN HEAVY DUTY CLAMP
- Dimensions
Unit: mm
|
SIZE |
øA |
L |
|
1/2"-3/4" |
33.0 |
60.0 |
|
1"-1.5" |
58.6 |
85.0 |
|
2" |
72.0 |
99.0 |
|
2.5" |
85.6 |
114.0 |
|
3" |
99.0 |
129.0 |
|
4" |
127.0 |
157.0 |
|
DN125 |
158.4 |
205.0 |
|
6" |
170.0 |
217.0 |
|
DN150 |
187.0 |
237.0 |
|
8" |
221.0 |
265.0 |
|
DN200 |
238.0 |
280.0 |
|
10" |
271.3 |
319.0 |
|
12" |
322.5 |
378.0 |
