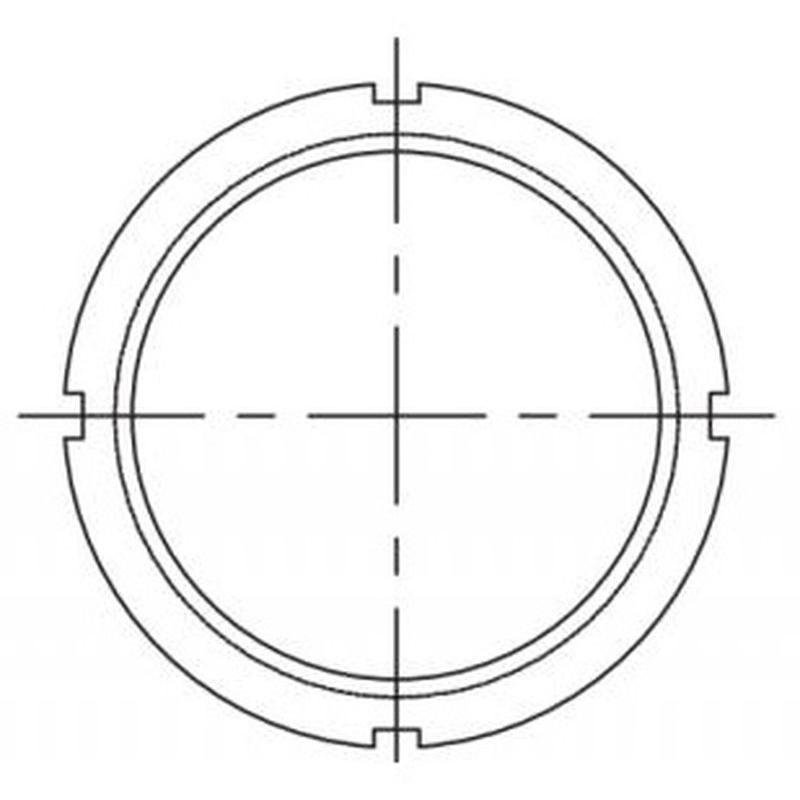

- ROUND SLOTTED NUT
- Dimensions
Unit: mm
|
SIZE |
øA |
øB |
øC |
D |
|
1" |
34.8 |
RD44x1/6 |
57.0 |
20.0 |
|
1.2" |
42.3 |
RD52x1/6 |
65.0 |
20.0 |
|
1.5" |
48.1 |
RD58x1/6 |
71.0 |
20.0 |
|
2" |
62.0 |
RD72x1/6 |
86.0 |
22.0 |
|
2.5" |
76.0 |
RD88x1/6 |
103.0 |
24.0 |
|
3" |
88.3 |
RD100x1/6 |
115.0 |
25.0 |
|
4" |
116.0 |
RD130x1/4 |
148.0 |
31.0 |
|
5" |
140.0 |
RD160x1/4 |
178.0 |
32.0 |
|
6" |
161.0 |
RD175x1/4 |
193.0 |
32.0 |
