- DIAPHRAGM VALVE

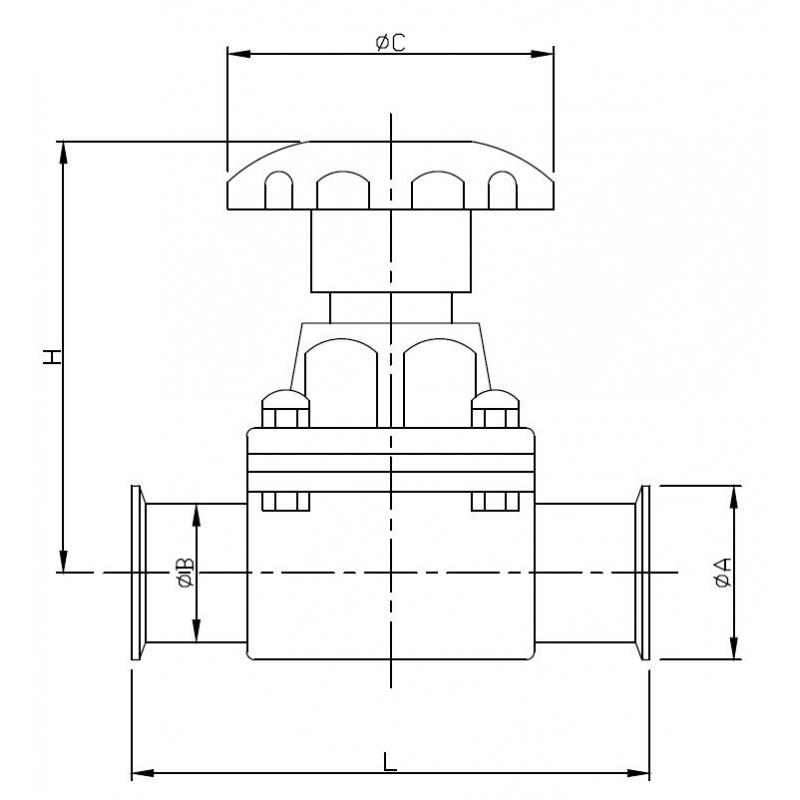

- Dimensions
Unit: mm
|
SIZE |
øA |
øB |
øC |
L |
H |
|
½" |
50.5 |
15.0 |
80.0 |
108.0 |
88/89 |
|
¾" |
50.5 |
19.05 |
80.0 |
110.0 |
91/102 |
|
1" |
50.5 |
25.4 |
80.0 |
133.0 |
110/123 |
|
1¼" |
50.5 |
31.8 |
80.0 |
150.0 |
129/138 |
|
1.5" |
50.5 |
38.1 |
120.0 |
163.0 |
139/159 |
|
2" |
64.0 |
50.8 |
120.0 |
191.0 |
159/186 |
|
2.5" |
77.5 |
63.5 |
120.0 |
213.0 |
159/186 |
|
3" |
91.0 |
76.2 |
120.0 |
225.0 |
159/186 |
