- CLAMPED STRAIGHT SIGHT GLASS

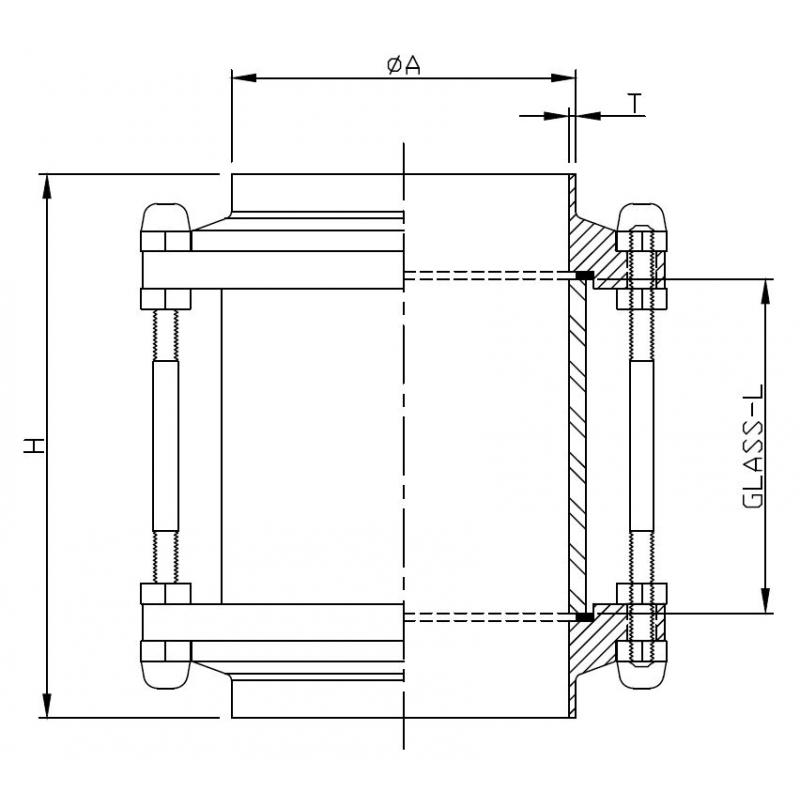

- Dimensions

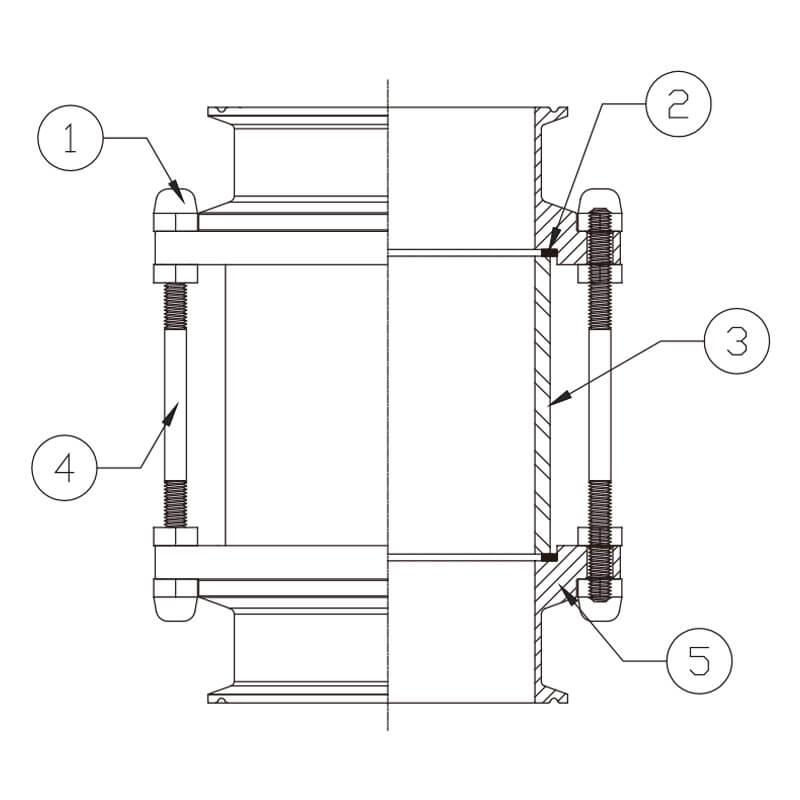

- Material List
Unit: mm
|
SIZE |
øA |
øB |
H |
GLASS |
|
1" |
50.5 |
25.4 |
159.0 |
100.0 |
|
1.5" |
50.5 |
38.1 |
163.5 |
100.0 |
|
2" |
64.0 |
50.8 |
170.0 |
100.0 |
|
2.5" |
77.5 |
63.5 |
173.3 |
100.0 |
|
3" |
91.0 |
76.2 |
178.0 |
100.0 |
|
4" |
119.0 |
101.6 |
196.0 |
100.0 |
|
NO |
PART |
MATERIAL |
|
1 |
SCREW NUT |
SUS-304 |
|
2 |
SEAL |
VITON, EPDM, SILICONE |
|
3 |
GLASS |
NON-TOXIC |
|
4 |
SCREW BOLT |
SUS-304 |
|
5 |
BODY |
SUS-304, 316L |
