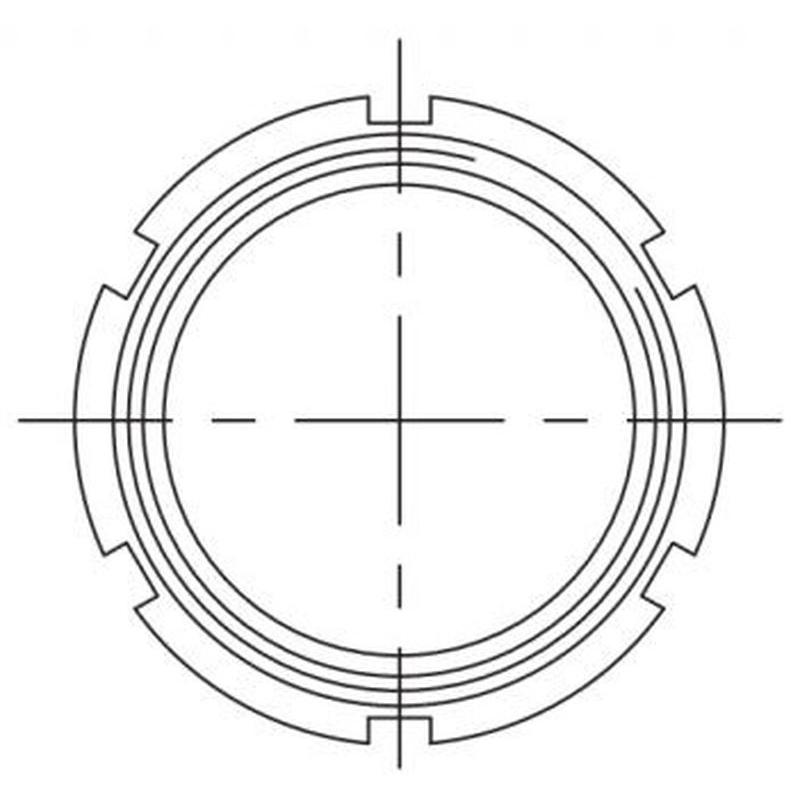

- ROUND SLOTTED NUT
- Dimensions
Unit: mm
|
SIZE |
øA |
øB |
øC |
D |
|
1" |
RD40x1/6 |
51.0 |
32.3 |
20.0 |
|
1.2" |
RD48x1/6 |
60.0 |
40.0 |
22.0 |
|
1.5" |
RD60x1/6 |
74.0 |
48.5 |
25.0 |
|
2" |
RD70x1/6 |
84.0 |
61.0 |
26.0 |
|
2.5" |
RD85x1/6 |
100.0 |
74.0 |
30.0 |
|
3" |
RD98x1/6 |
114.0 |
87.0 |
32.0 |
|
4" |
RD132x1/6 |
154.0 |
117.0 |
45.0 |
