- TRI-CLAMP HOSE ADAPTER

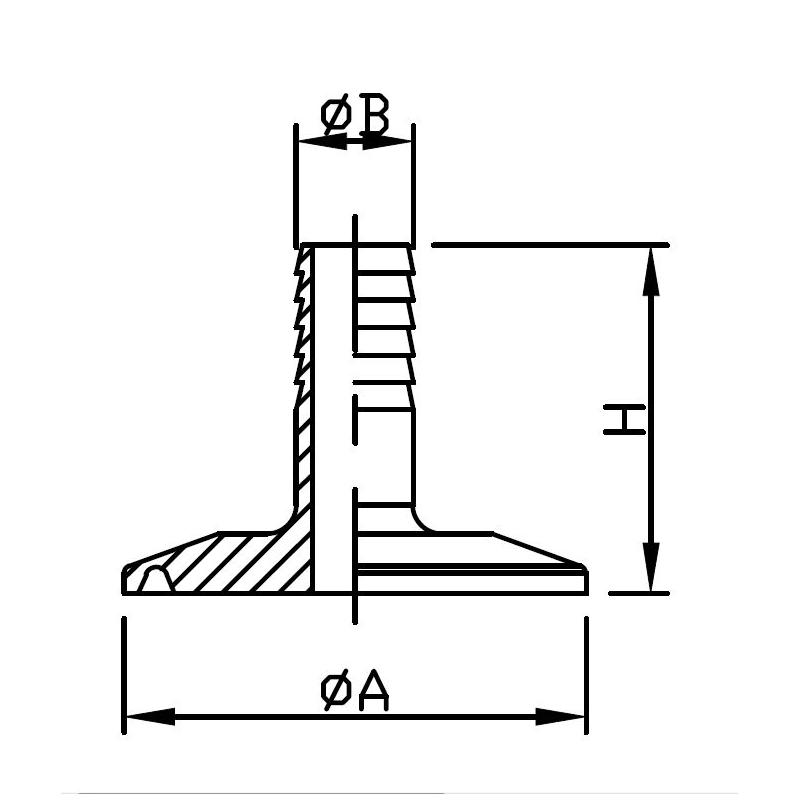

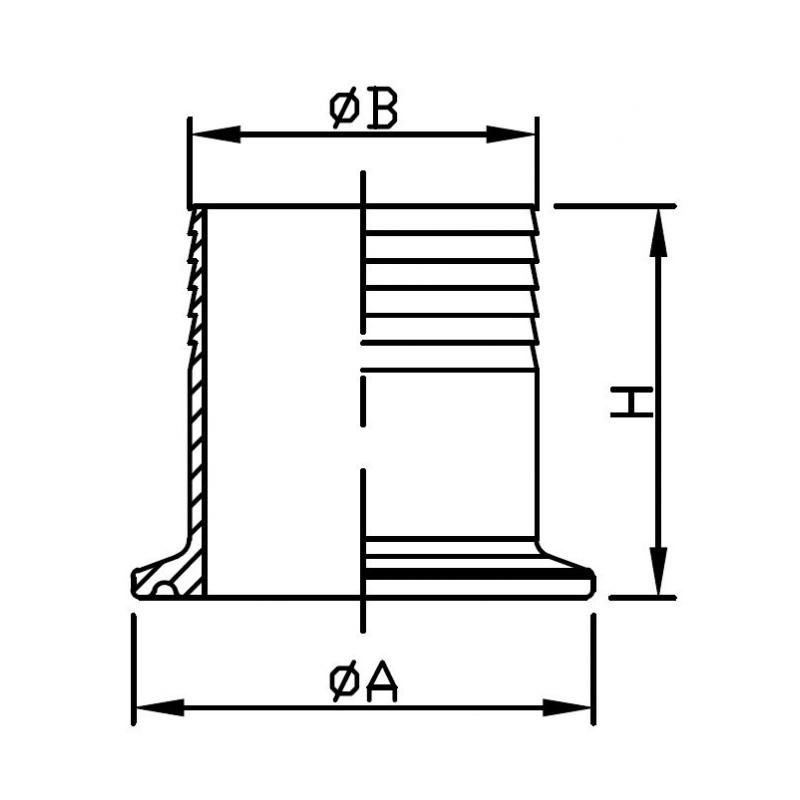

- Dimensions
Unit: mm
|
SIZE |
øA |
øB |
H |
|
ø25x½" |
25.4 |
12.7 |
38.1 |
|
ø25x¾" |
25.4 |
19.05 |
38.1 |
|
ø50x½" |
50.5 |
12.7 |
38.1 |
|
ø50x¾" |
50.5 |
19.05 |
38.1 |
|
1" |
50.5 |
25.4 |
42.9 |
|
1.2" |
50.5 |
31.8 |
42.9 |
|
1.5" |
50.5 |
38.1 |
42.9 |
|
2" |
64.0 |
50.8 |
58.7 |
|
2.5" |
77.5 |
63.5 |
59.5 |
|
3" |
91.0 |
76.2 |
78.6 |
|
4" |
119.0 |
101.6 |
86.5 |
