- RECESSLESS FERRULE

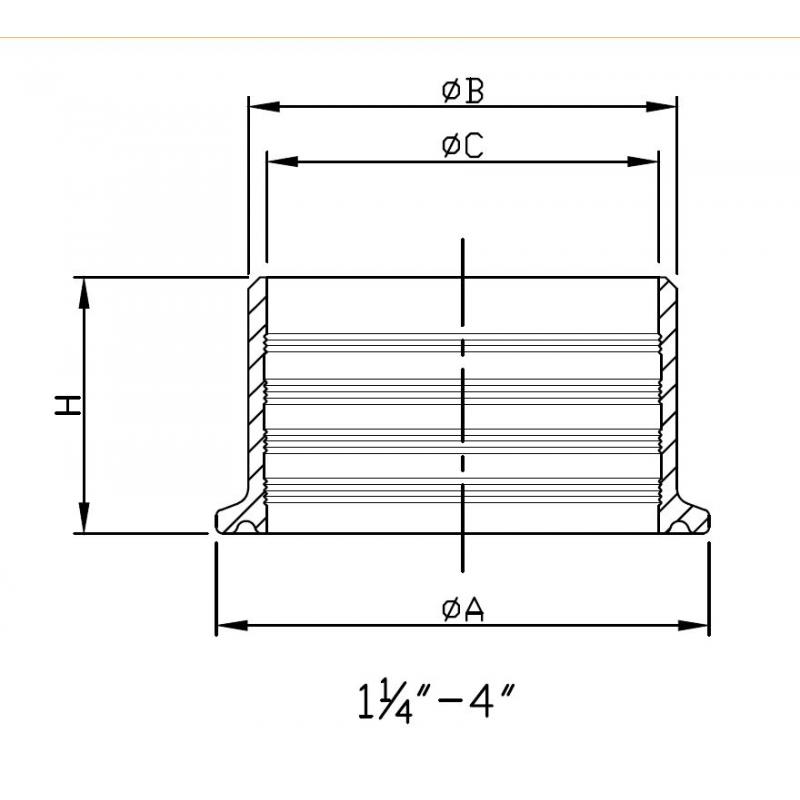

- Dimensions
-
14RMP Sanitary Roll-On Expanding Ferrules are available in both 304 & 316L stainless steel alloy
Unit: mm
|
SIZE |
øA |
øB |
øC |
H |
|
1" |
50.5 |
29.5 |
25.5 |
19.1 |
|
1.2" |
50.5 |
36.3 |
31.9 |
28.6 |
|
1.5" |
50.5 |
42.6 |
38.2 |
28.6 |
|
2" |
64.0 |
55.7 |
50.9 |
33.3 |
|
2.5" |
77.5 |
68.8 |
63.6 |
34.9 |
|
3" |
91.0 |
81.9 |
76.3 |
36.5 |
|
4" |
119.0 |
108.1 |
101.7 |
38.1 |
