3A-15TRF Short Male Part

Short male adapter for sanitary tubing in limited spaces. Designed to be used with a female adapter for a secure union connection.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–4"

Material: SS304, SS316L

Specifications

UNIT: mm

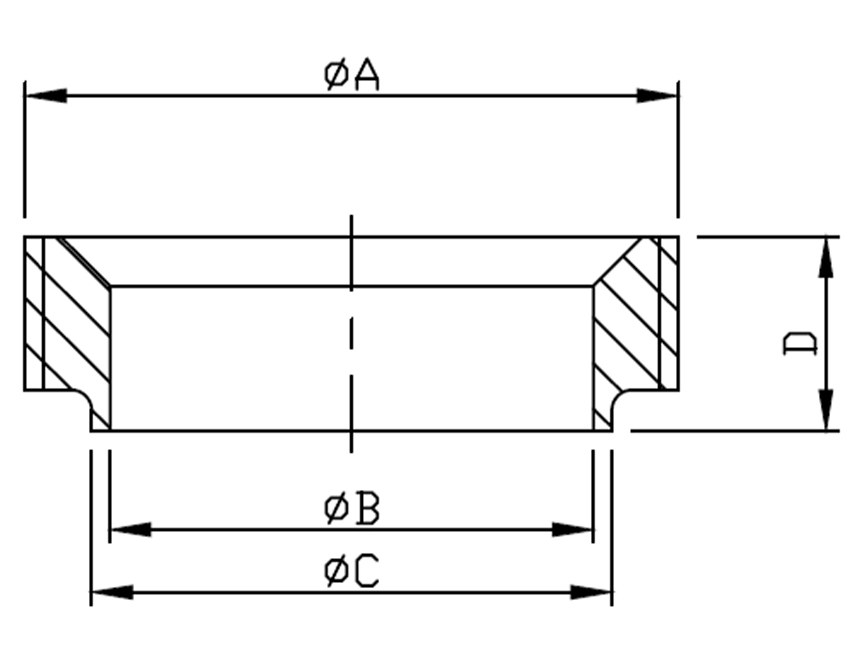

SIZE ØA ØB ØC D
1" 37.1 ACME8TPI 22.2 25.7 18.3
1.5" 50.7 ACME 8TPI 34.9 38.4 18.3
2" 64.2 ACME 8TPI 47.5 51.1 19.1
2.5" 77.7 ACME 8TPI 60.2 63.8 22.2
3" 91.2 ACME 8TPI 72.9 76.5 23.1
4" 119.3 ACME 6TPI 97.4 101.9 26.2
