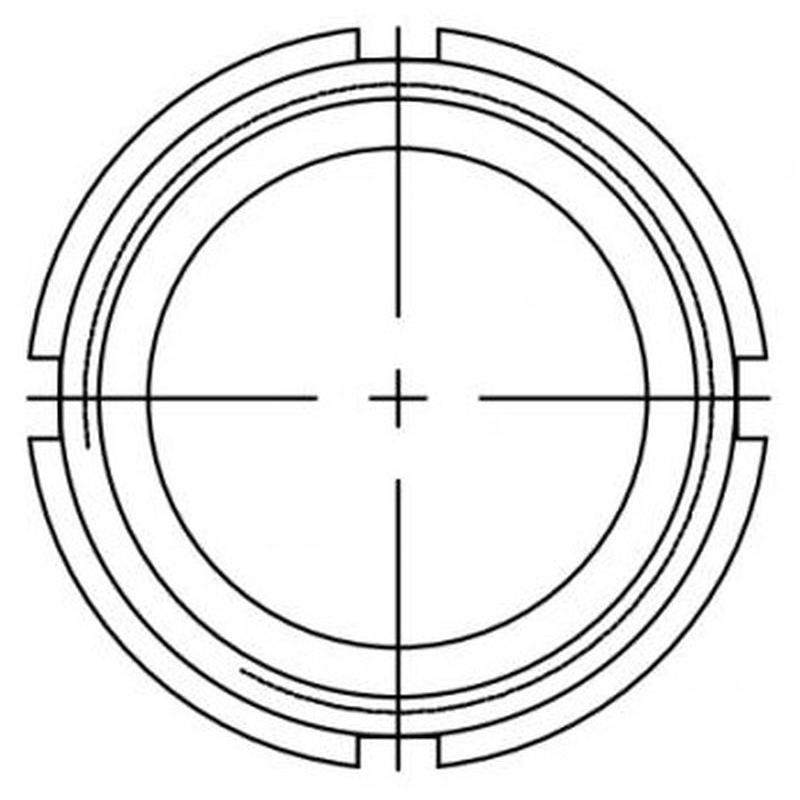

- ROUND SLOTTED NUT
- Dimensions
Unit: mm
|
SIZE |
øA |
øB |
øC |
D |
SLOT |
|
|
DN10 |
38.0 |
19.0 |
RD28x1/8 |
18.0 |
4 |
|
|
DN15 |
44.0 |
25.0 |
RD34x1/6 |
18.0 |
4 |
|
|
DN20 |
54.0 |
31.0 |
RD44x1/6 |
21.0 |
4 |
|
|
DN25 |
63.0 |
36.0 |
RD52x1/6 |
21.0 |
4 |
|
|
DN32 |
70.0 |
42.0 |
RD58x1/6 |
21.0 |
4 |
|
|
DN40 |
78.0 |
49.0 |
RD65x1/6 |
21.0 |
4 |
|
|
DN50 |
92.0 |
62.0 |
RD78x1/6 |
22.0 |
4 |
|
|
DN65 |
112.0 |
80.0 |
RD95x1/6 |
25.0 |
4 |
6 |
|
DN80 |
127.0 |
94.0 |
RD110x1/4 |
30.0 |
4 |
6 |
|
DN100 |
148.0 |
115.0 |
RD130x1/4 |
31.0 |
4 |
6 |
|
DN125 |
178.0 |
138.0 |
RD160x1/4 |
35.0 |
4 |
6 |
|
DN150 |
210.0 |
164.0 |
RD190x1/4 |
40.0 |
4 |
6 |
