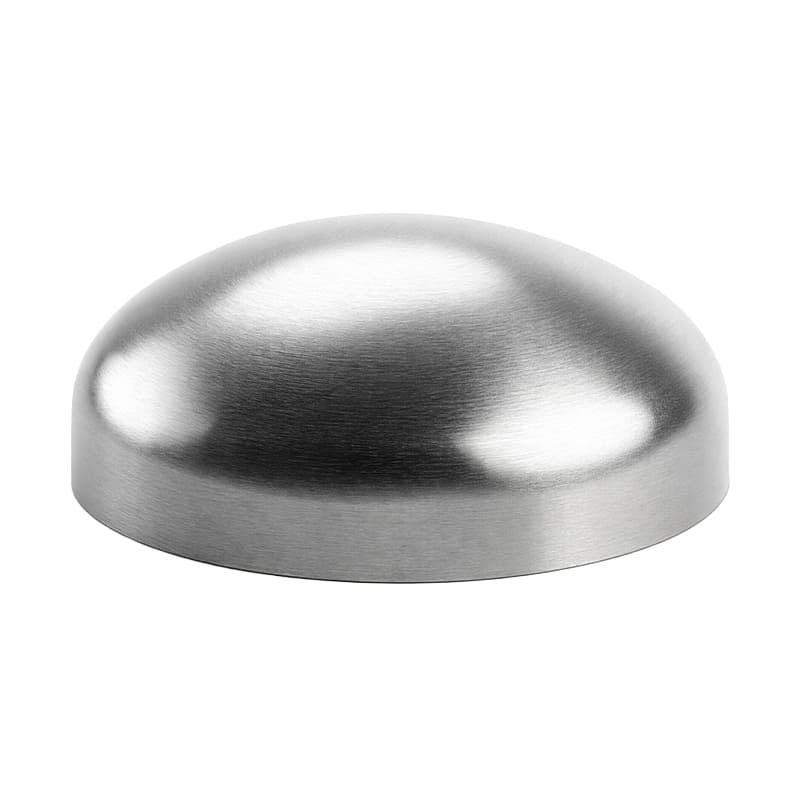

End Eap

Product Model: 3A-16W

The Sanitary End Cap is designed to seal the ends of hygienic tubing systems, equipment connections, and reserved tubline ports. It is widely used in hygienic fluid processing systems for the food, beverage, dairy, and AI data center liquid cooling industries.

  1. Inquiry
  2. Back
Features & Benefits
  • Manufactured from high-quality SUS304 and SUS316L stainless steel
  • Effectively seals tube ends and equipment connections to prevent fluid leakage and external contamination
  • Maintains the integrity of the tubing system, ensuring a hygienic fluid processing environment
  • Ideal for equipment maintenance, system expansion, and sealing unused tubeline ports
  • High-polish surface finish (Ra ≤ 0.8 μm / 32 Ra) meets hygienic application requirements

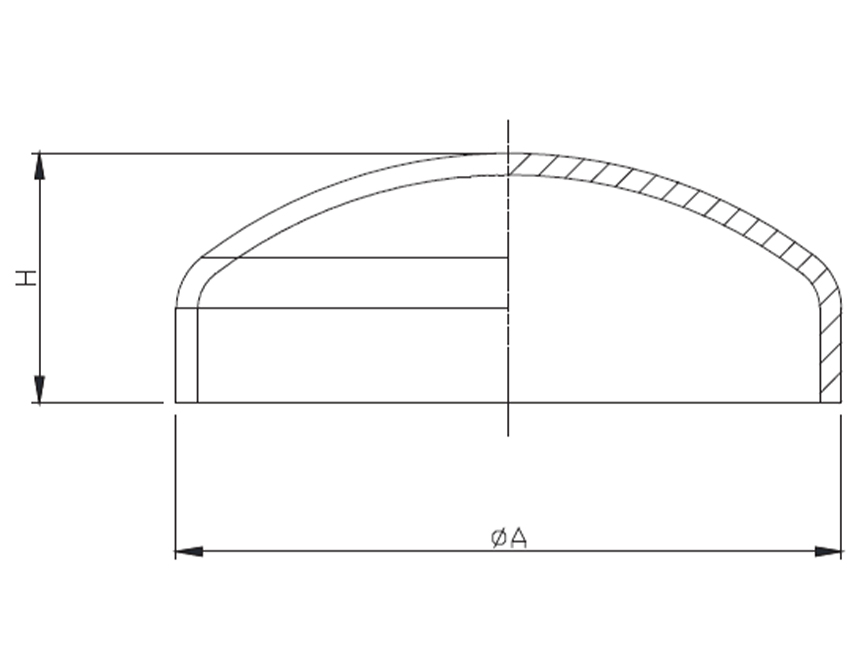

Specifications

UNIT: mm

SIZE ØA H
1" 25.4 9.5
1.5" 38.1 14.3
2" 50.8 19.1
2.5" 63.5 25.4
3" 76.2 31.8
4" 101.6 38.1
6" 152.4 50.8
8" 203.2 63.5
