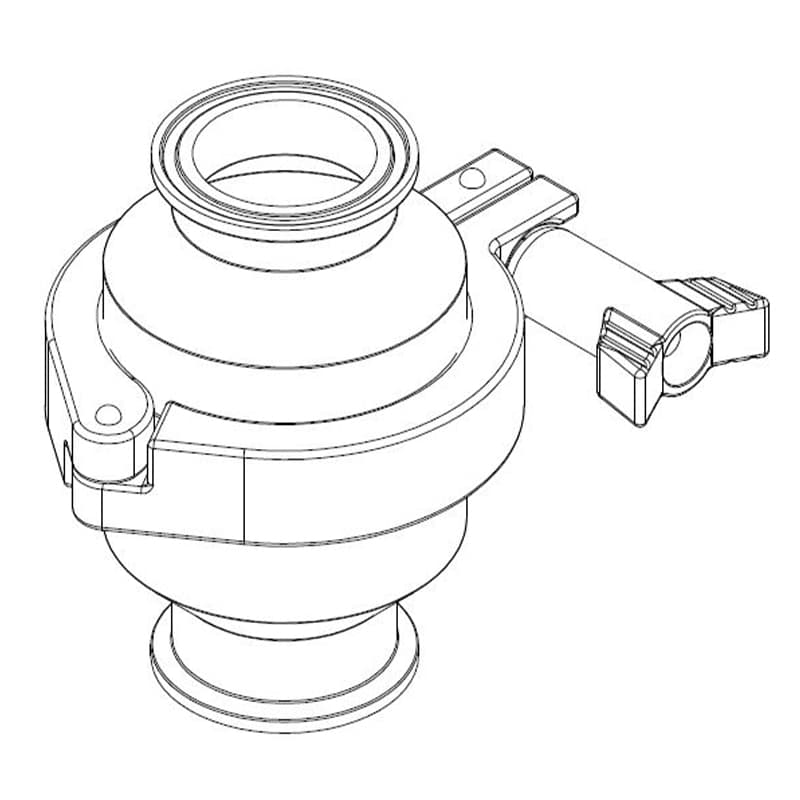

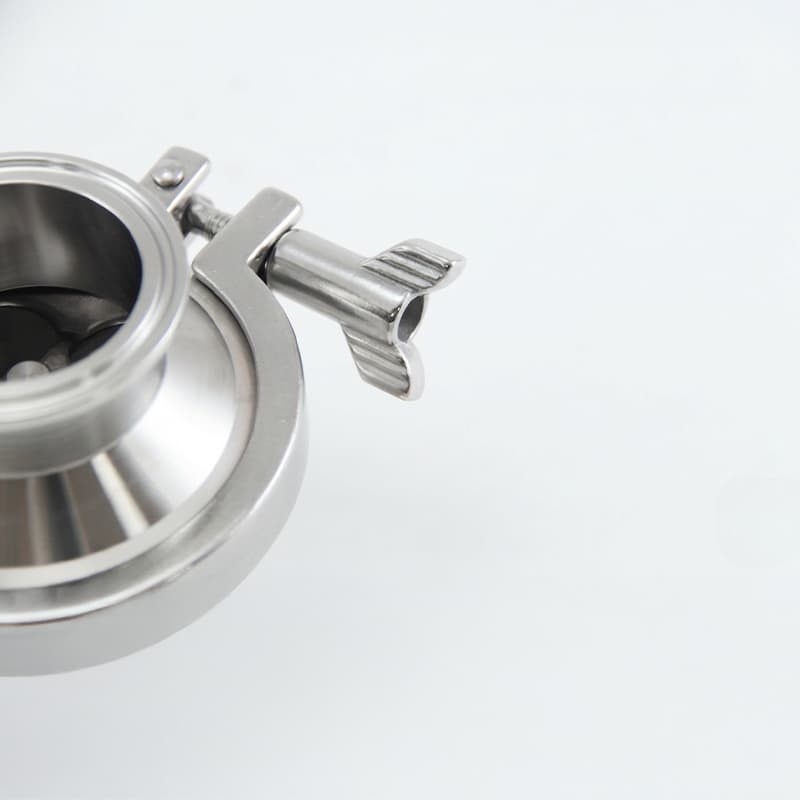

Tri-Clamp Check Valve

The Tri-Clamp Sanitary Check Valve features a quick-connect Tri-Clamp design for fast installation, disassembly, and maintenance. Its sanitary construction allows easy cleaning and seal replacement, helping minimize equipment downtime and improve maintenance efficiency. It is ideal for hygienic tubing systems that require frequent cleaning and is widely used in the food, beverage, and dairy industries.

  1. Inquiry
  2. Back
  3. Next

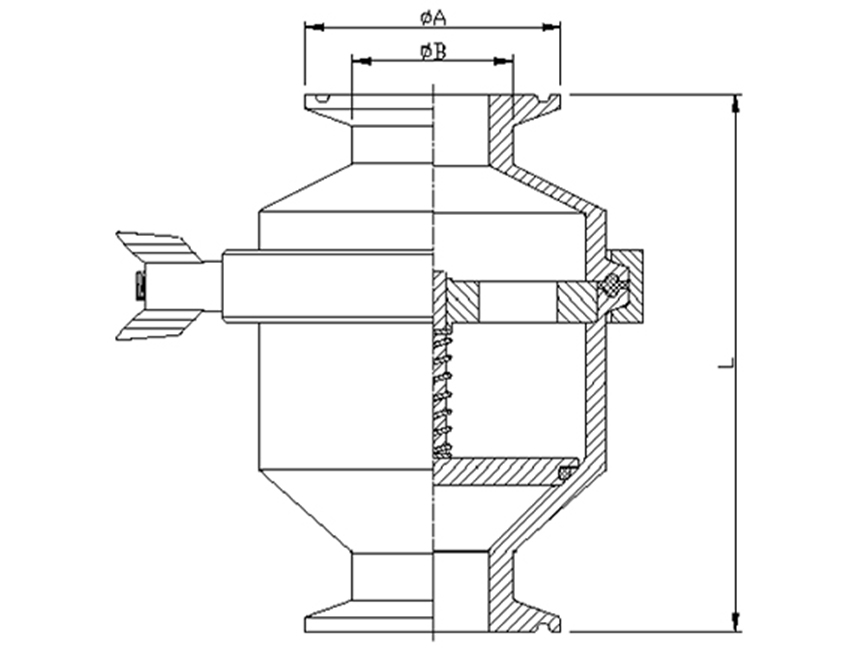

Dimensions

Unit: mm

SIZE ØA ØB L
1" 50.5 25.4 87.5
1.5" 50.5 38.1 95.5
2" 64.0 50.8 104.5
2.5" 77.5 63.5 116.2
3" 91.0 76.2 123.5
4" 119.0 101.6 123.5
Material Specifications
No. Part Material
1 Outlet SUS304 / SUS316 / SUS316L
2 Clamp SUS304
3 Gasket Viton / EPDM / Silicone
4 Plate SUS304 / SUS316 / SUS316L
5 Spring SUS304 / SUS316
6 Seal Viton / EPDM / Silicone
7 Inlet SUS304 / SUS316 / SUS316L

Working Pressure: 0.6–10 bar
