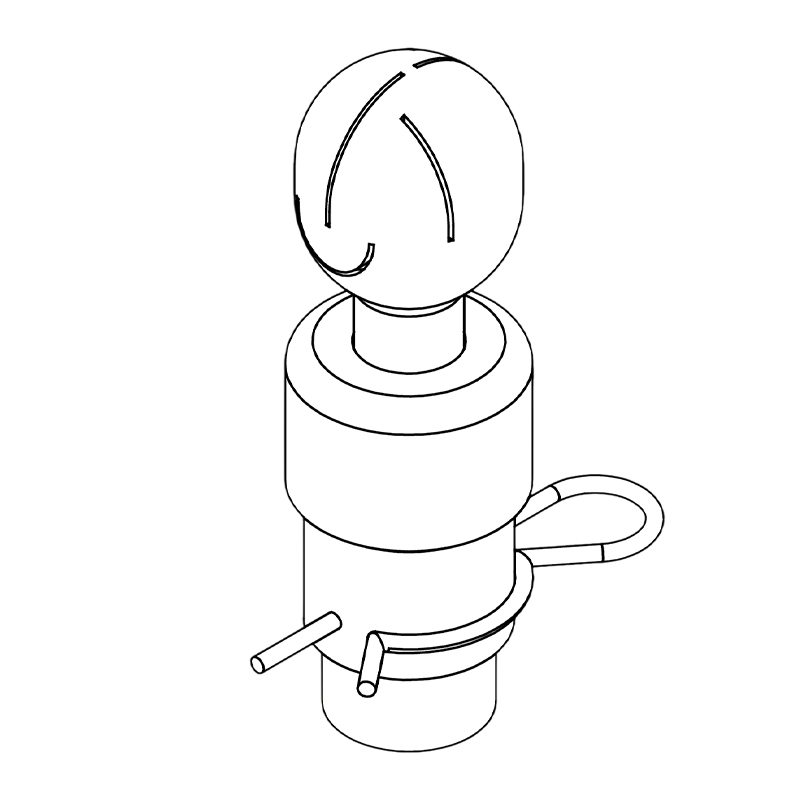

360° Rotary Cleaning Spray Ball

The 360° Rotary Spray Ball uses the flow of cleaning fluid to drive the spray head, providing full 360° coverage and more uniform cleaning of the equipment interior. It is ideal for large storage tanks and process equipment requiring high cleaning efficiency, helping improve cleaning performance while reducing water and cleaning solution consumption.

  1. Inquiry
  2. Back
  3. Prev

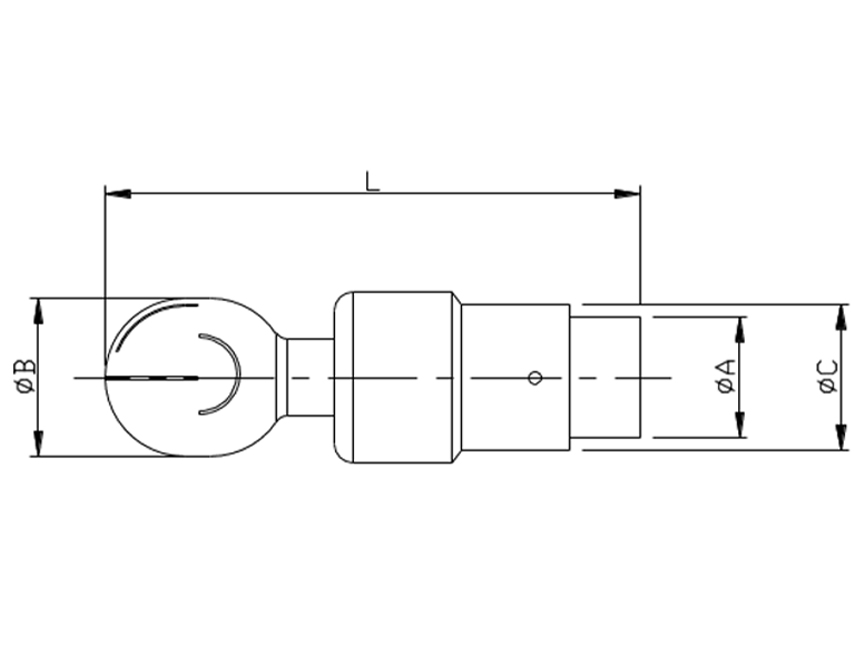

Specifications

UNIT: mm

SIZE ØA ØB ØC L
3/4" 19.05 25 22.5 84
1" 25.4 45 29 149
1.5" 38.1 52.5 41.5 152
2" 50.8 64.5 54.5 173

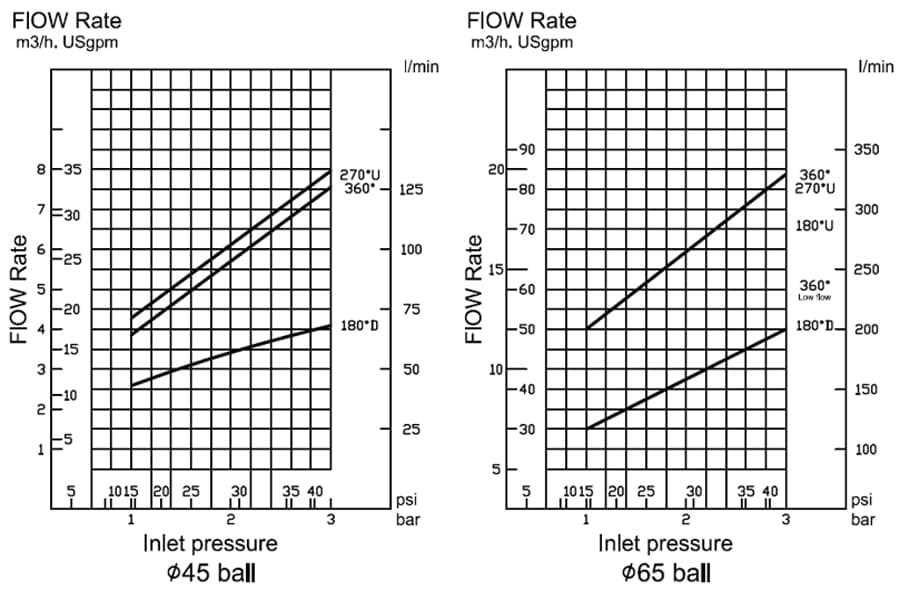

Spray Ball Flow Rate Chart
