3A-9MP (Clamp Cross)

Product Model: 3A-9MP

Designed with a Tri-Clamp quick-connect, this clamp cross enables efficient four-way fluid distribution and convergence while allowing fast installation, easy disassembly, and convenient maintenance. It is ideal for hygienic tubing systems that require frequent cleaning.

  1. Inquiry
  2. Back
  3. Prev
Details

Connection: Tri-Clamp

Size Range: 3/4"–4"

Material: SUS304, SUS316L

Surface Finish: Ra ≤ 0.8 μm (32 Ra)

Standard: 3-A Sanitary Standard

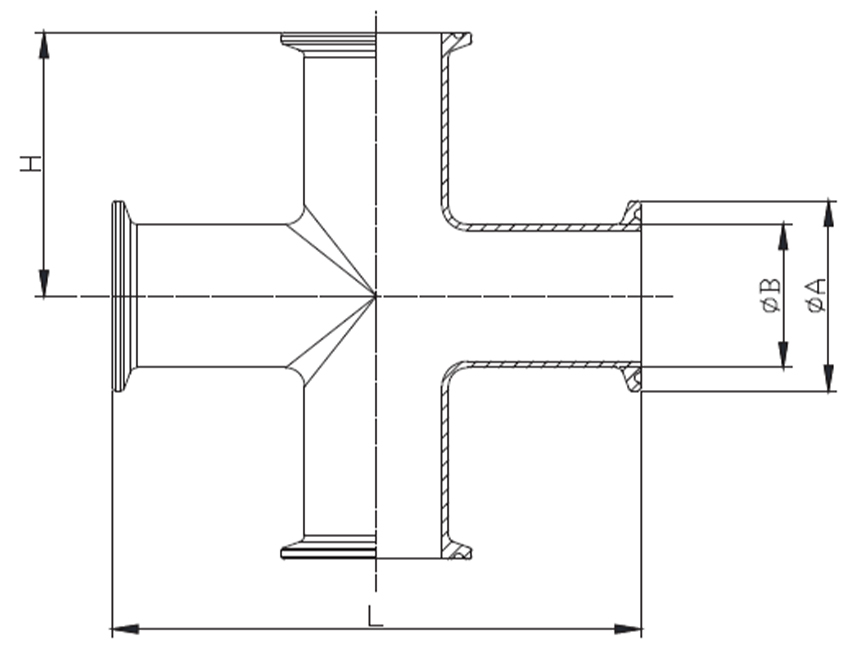

Specifications

UNIT: mm

SIZE ØA ØB L H
3/4" 25.4 19.05 82.6 41.3
3/4" 25.4 19.05 133.4 66.7
1" 50.5 25.4 120.6 60.3
1.5" 50.5 38.1 140 70
2" 64 50.8 177.8 88.9
2.5" 77.5 63.5 177.8 88.9
3" 91 76.2 190.6 95.3
4" 119 101.6 228.8 114.4
