Short Weld Cross

Product Model: 3A-9WWWW

Designed with a butt-weld connection, this long weld cross provides a strong and permanent four-way tubing configuration, making it ideal for hygienic processing systems that require long-term, reliable operation.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Connection: Butt-Weld

Size Range: 3/4"–4"

Material: SUS304, SUS316L

Surface Finish: Ra ≤ 0.8 μm (32 Ra)

Standard: 3-A Sanitary Standard

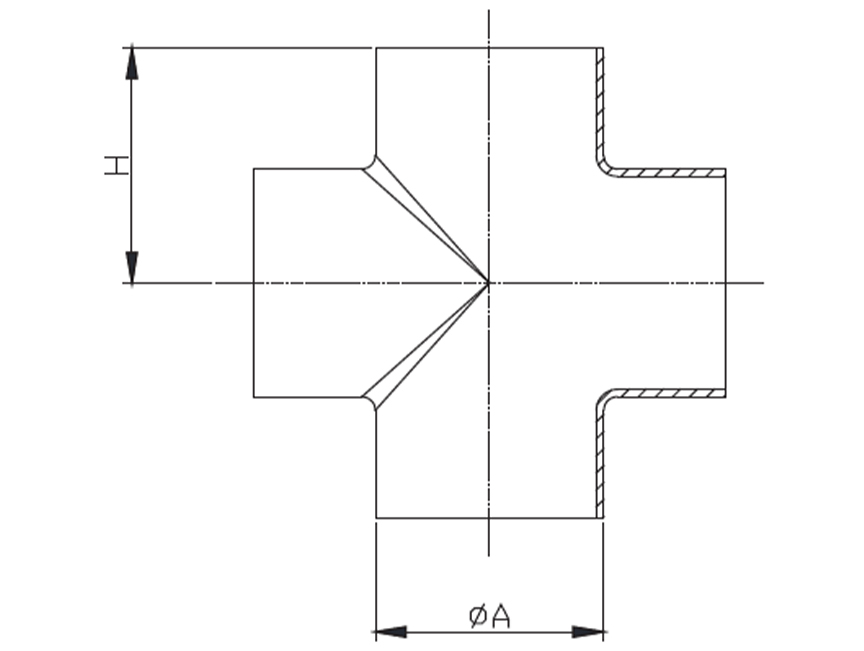

Specifications

UNIT: mm

SIZE ØA H
3/4" 19.05 28.6
1" 25.4 28.6
1.5" 38.1 42.1
2" 50.8 52.4
2.5" 63.5 59.5
3" 76.2 65.9
4" 101.6 87.3
