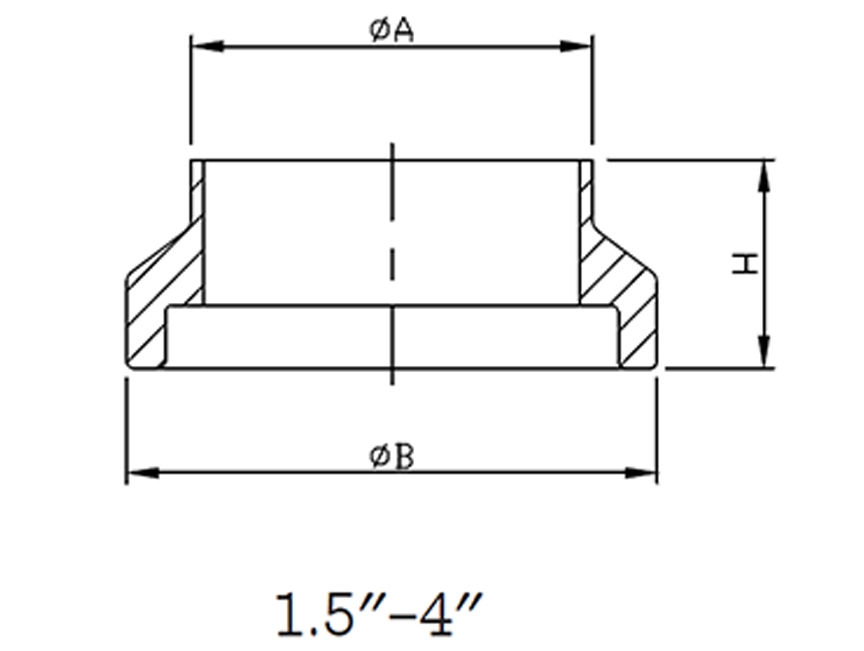

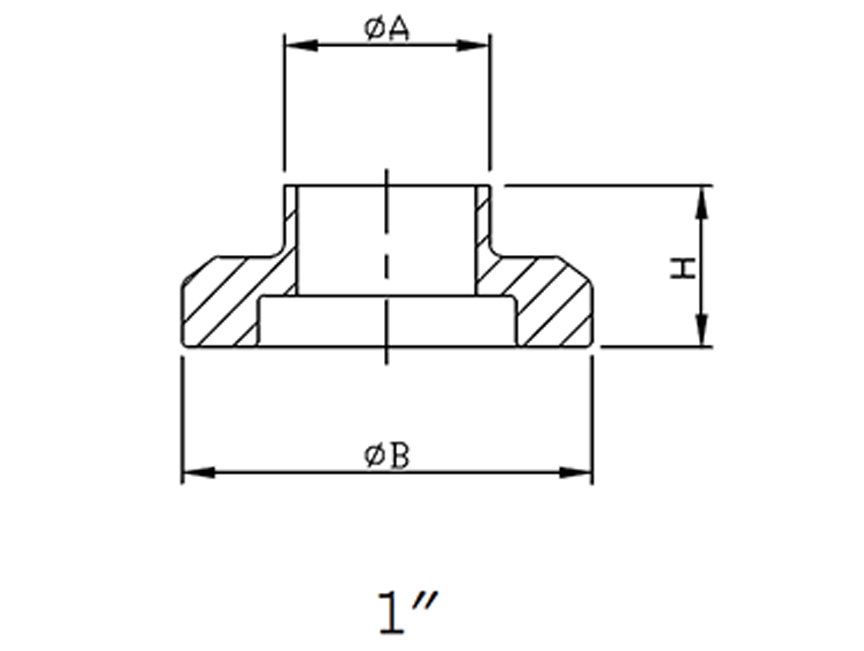

| SIZE | ØA | ØB | H |
| 1" | 25.4 | 50.8 | 19.84 |
| 1.5" | 38.1 | 50.8 | 23.83 |
| 2" | 50.8 | 67.18 | 26.2 |
| 2.5" | 63.5 | 84.12 | 29.36 |
| 3" | 76.2 | 98.43 | 30.96 |
| 4" | 101.6 | 123.83 | 34.14 |
Details
Size Range: 1"–4"
Material: SUS304, SUS316L
Surface Finish: Ra ≤ 0.8 μm (32 Ra)
