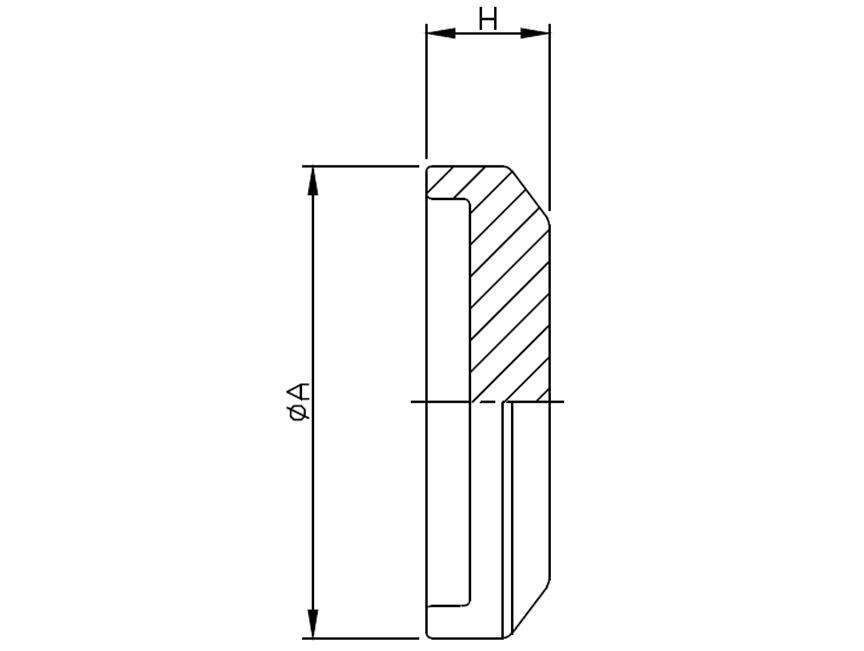

Next UNIT: mm
| SIZE | ØA | H |
| 1" | 50.8 | 12.7 |
| 1.5" | 50.8 | 12.7 |
| 2" | 66.7 | 17.4 |
| 2.5" | 84.1 | 19.05 |
| 3" | 98.4 | 19.05 |
| 4" | 123.8 | 19.05 |
Details
Size Range: 1"–4"
Material: SUS304, SUS316L
Surface Finish: Ra ≤ 0.8 μm (32 Ra)
