Complying with SMS standards, the SMS-32W eccentric reducer features an eccentric design to minimize fluid retention and improve drainage efficiency. It is ideal for sanitary fluid tubing systems requiring hygienic performance and reliable flow control.
Connection Type: Butt-Weld
Type: Eccentric Reducer
Size Range: 1.5" × 1" – 4" × 3"
Material: SUS304, SUS316L Stainless Steel
Surface Finish: Ra ≤ 0.8 μm (32 Ra)
Applicable Standard: SMS

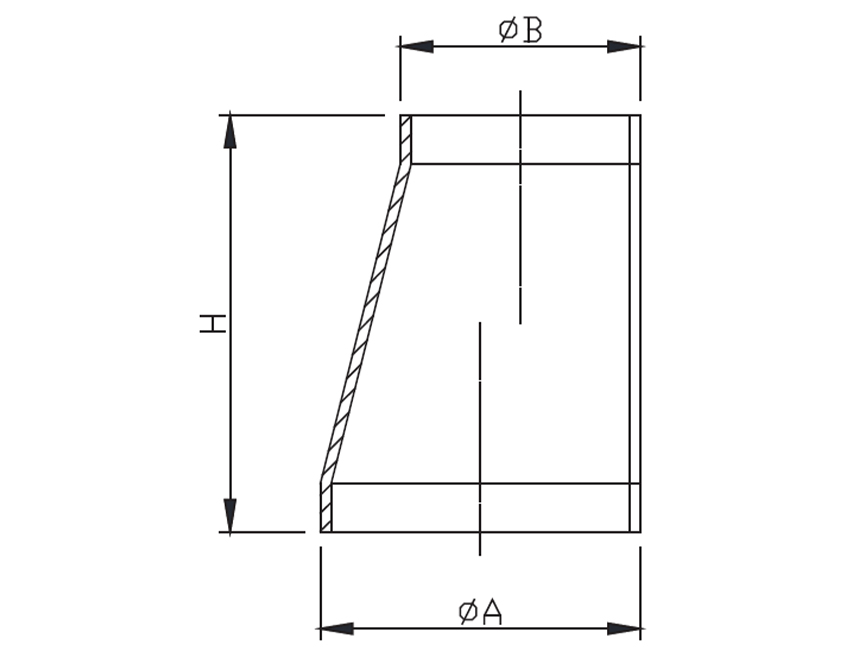

UNIT: mm
| SIZE | ØA | ØB | H |
| 1.5"x1" | 38.1 | 25.4 | 46 |
| 2"x1" | 50.8 | 25.4 | 68 |
| 2"x1.5" | 50.8 | 38.1 | 47 |
| 2.5"x1" | 63.5 | 25.4 | 92 |
| 2.5"x1.5" | 63.5 | 38.1 | 70 |
| 2.5"x2" | 63.5 | 50.8 | 44 |
| 3"x1.5" | 76.2 | 38.1 | 92 |
| 3"x2" | 76.2 | 50.8 | 68 |
| 3"x2.5" | 76.2 | 63.5 | 47 |
| 4"x2" | 101.6 | 50.8 | 117 |
| 4"x2.5" | 101.6 | 63.5 | 94 |
| 4"x3" | 101.6 | 76.2 | 74 |
