Tri Clamp Concentric Reducer

Product Model: 3A-31MP

Designed with a Tri Clamp connection, the 3A-31MP provides quick and easy connection between different tube diameters, allowing for convenient installation, disassembly, and maintenance. It is ideal for sanitary tubing systems requiring frequent cleaning and sterilization.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Connection Type: Tri Clamp

Type: Concentric Reducer

Size Range: 1" × 1/2" – 6" × 4"

Material: SUS304, SUS316L Stainless Steel

Surface Finish: Ra ≤ 0.8 μm (32 Ra)

Applicable Standard: 3A

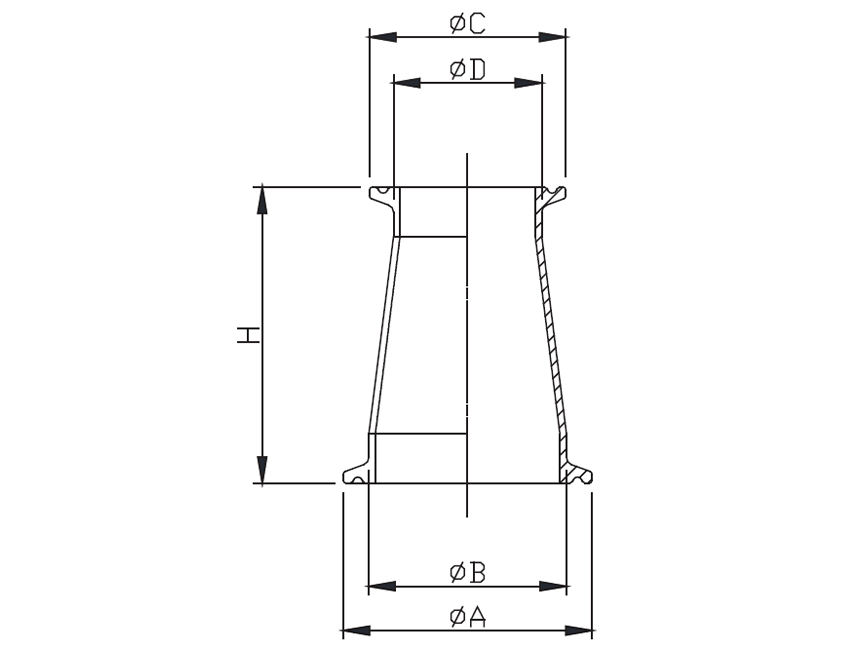

Specifications

UNIT: mm

SIZE ØA ØB ØC ØD H
1"x1/2" 50.5 25.4 25.2 12.7 76.2
1"x3/4" 50.5 25.4 25.2 19.05 50.8
1.5"x1/2" 50.5 38.1 25.2 12.7 127
1.5"x3/4" 50.5 38.1 25.2 19.05 101.6
1.5"x1" 50.5 38.1 50.5 25.4 76.2
2"x1" 64 50.8 50.5 25.4 127
2"x1.5" 64 50.8 50.5 38.1 76.2
2.5"x1" 77.5 63.5 50.5 25.4 177.8
2.5"x1.5" 77.5 63.5 50.5 38.1 127
2.5"x2" 77.5 63.5 64 50.8 76.2
3"x1.5" 91 76.2 50.5 38.1 177.8
3"x2" 91 76.2 64 50.8 127
3"x2.5" 91 76.2 77.5 63.5 76.2
4"x2" 119 101.6 64 50.8 231.8
4"x2.5" 119 101.6 77.5 63.5 181
4"x3" 119 101.6 91 76.2 130.2
6"x3" 166.8 152.4 91 76.2 174.6
6"x4" 166.8 152.4 119 101.6 177.8
