The Pneumatic Actuated Sanitary Butterfly Valve is powered by compressed air, enabling fast and reliable valve opening and closing while providing stable and precise flow control. It is ideally suited for automated sanitary processing systems, helping improve production efficiency, reduce labor costs, and enhance overall process reliability.
| Item | Specification |
| Actuator Type | Double-Acting / Single-Acting Pneumatic Actuator |
| Operating Pressure | Double-Acting: 4 Bar Single-Acting: 5.5 Bar |
| Applicable Size | 1"–4" |
| Applicable Valve | Sanitary Butterfly Valve |
| Connection Type | Butt-Weld / Tri-Clamp |

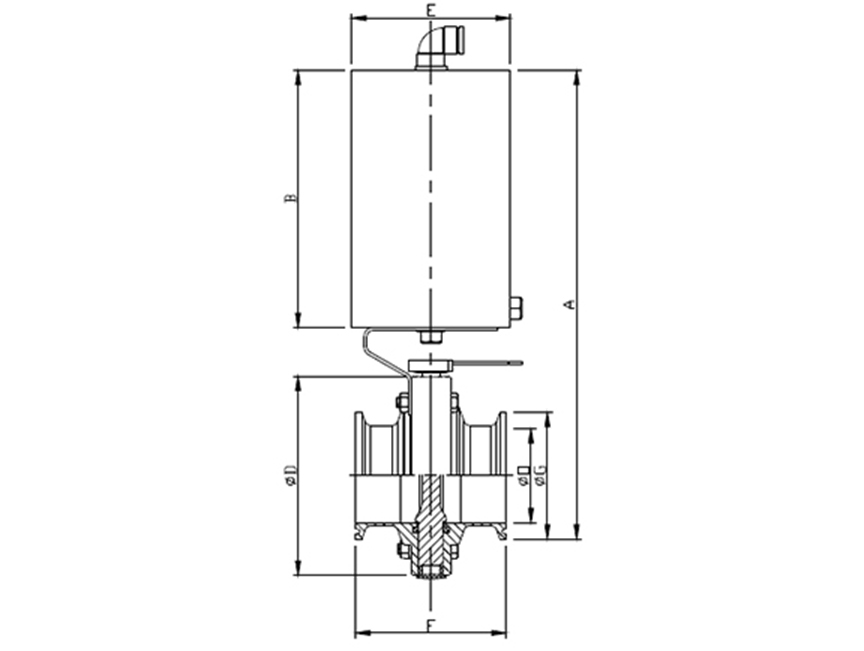

UNIT: mm
| SIZE | A | B | ØD | E | F | ØG | ØO |
| 1" | 258.0 | 148.0 | 78.0 | 86.0 | 66.0 | 50.5 | 22.1 |
| 1.5" | 266.0 | 148.0 | 86.0 | 86.0 | 70.0 | 50.5 | 34.8 |
| 2" | 280.0 | 148.0 | 100.0 | 86.0 | 76.0 | 64.0 | 47.5 |
| 2.5" | 295.0 | 148.0 | 115.0 | 86.0 | 80.0 | 77.5 | 60.2 |
| 3" | 308.0 | 148.0 | 128.0 | 86.0 | 84.0 | 91.0 | 72.9 |
| 4" | 334.0 | 148.0 | 154.0 | 86.0 | 104.0 | 119.0 | 97.4 |
| 6" | 440.0 | 183.0 | 225.0 | 108.0 | 130.0 | 166.8 | 146.8 |
