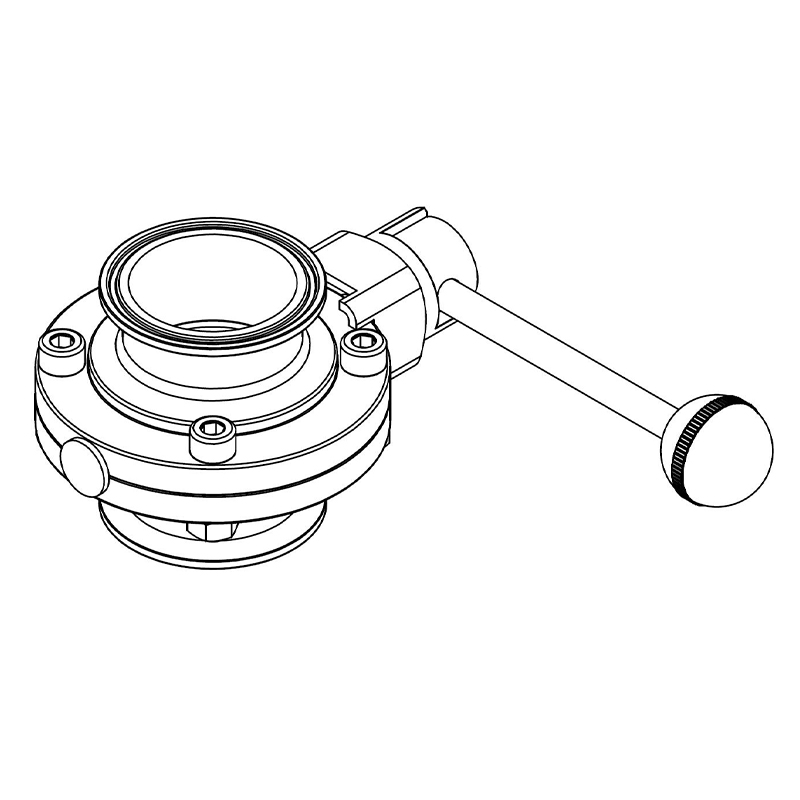

Tri-Clamp Butterfly Valve

The Tri-Clamp Sanitary Butterfly Valve features a quick-connect Tri-Clamp design for fast installation, disassembly, and cleaning, helping reduce maintenance time and improve operational efficiency. It is ideal for hygienic tubing systems that require frequent cleaning and maintenance, and is widely used in the food processing, dairy, beverage, and brewing industries.

  1. Inquiry
  2. Back
  3. Next

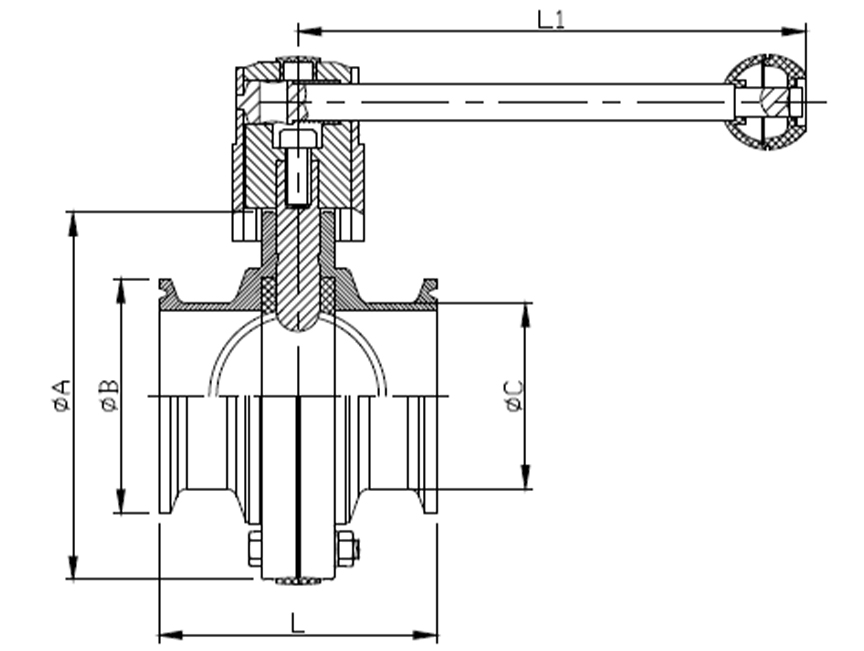

Dimensions

Unit: mm

SIZE ØA ØB ØC L   L1
1" 78.0 50.5 38.1 66.0 136.0
1.5" 86.0 50.5 38.1 70.0 136.0
2" 100.0 64.0 50.8 76.0 136.0
2.5" 115.0 77.5 63.5 80.0 136.0
3" 128.0 91.0 76.2 84.0 163.0
4" 154.0 119.0 101.6 104.0 163.0
6" 225.0 166.8 152.4 130.0 185.0

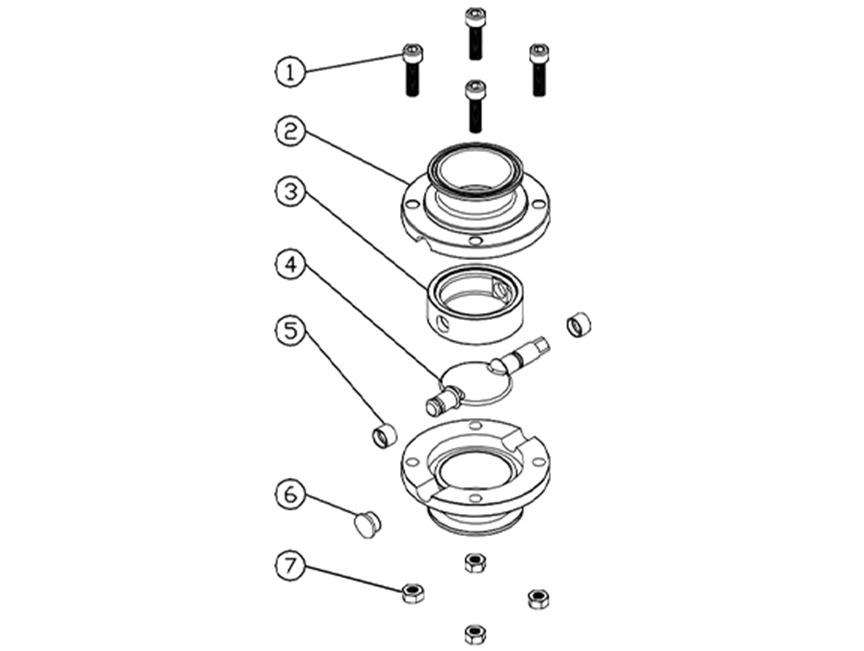

Material Specifications
No. Description Material Qty
1 Bolt SUS304 4
2 Body SUS304 / SUS316L 2
3 Seat Silicone / EPDM / Viton 1
4 Disc SUS304 / SUS316L 1
5 Bush ABS 2
6 Cap Plug ABS 1
7 Nut SUS304 4

Working Pressure: 145 PSI @ 20°C (68°F) (1"–4")

Temperature Range: -10°C to 95°C (15°F to 200°F)
