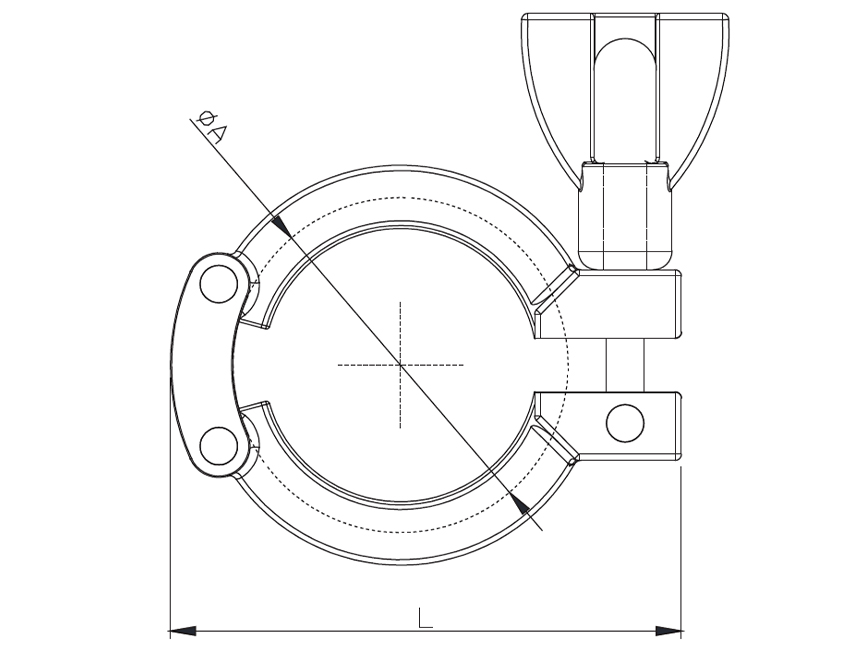

Next UNIT: mm
| SIZE | ØA | L |
| 1/2"-3/4" | 33 | 60 |
| 1"-1.5" | 58.6 | 85 |
| 2" | 72 | 99 |
| 2.5" | 85.6 | 114 |
| 3" | 99 | 129 |
| 4" | 127 | 157 |
| DN125 | 158.4 | 205 |
| 6" | 170 | 217 |
| DN150 | 187 | 237 |
| 8" | 221 | 265 |
| DN200 | 238 | 280 |
| 10" | 271.3 | 319 |
| 12" | 322.5 | 378 |
Heavy Duty Clamp Double Pin
Product Model: 13LB
The Double Pin Sanitary Clamp features a dual-bolt design that provides more even clamping force and enhanced sealing performance. It is ideal for larger sanitary tubing systems and applications requiring higher operating pressures.
Features
- Dual-bolt design for more uniform clamping force
- Enhanced sealing performance
- Suitable for higher-pressure applications and larger tubelines
- Easy to install, remove, and maintain
Details
Available Sizes: 1/2"～12"
Material: SUS304
