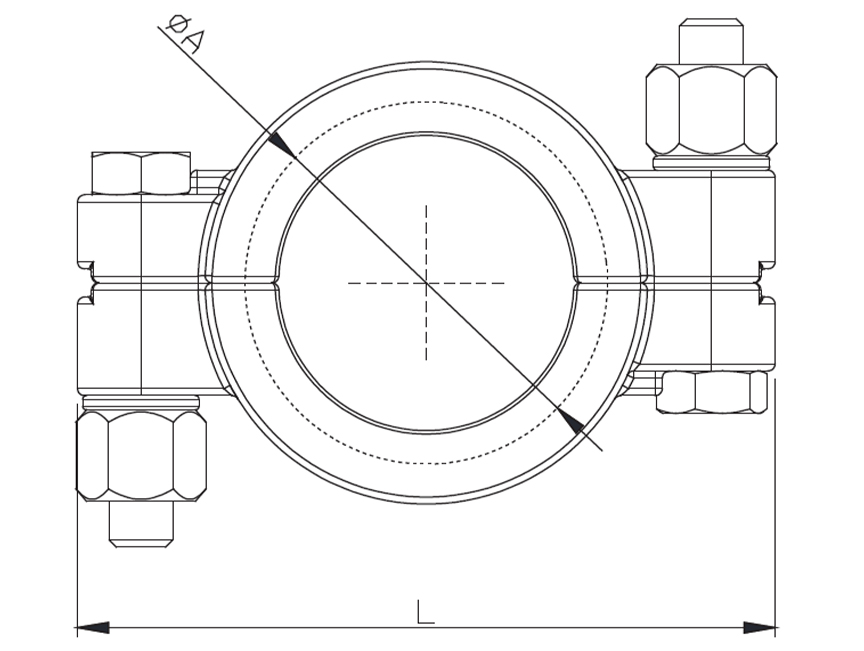

Next UNIT: mm
| SIZE | ØA | L |
| 1/2"-3/4" | 28.2 | 72.4 |
| 1"-1.5" | 53.7 | 99 |
| 2" | 67.2 | 112.8 |
| 2.5" | 80.2 | 126.6 |
| 3" | 94.2 | 140.3 |
| 4" | 122.2 | 165 |
| 6" | 170 | 211 |
| 8" | 221 | 262 |
High Pressure Clamp
Product Model: 13MHP
The High Pressure Sanitary Clamp is specifically designed for high-pressure processing applications. Compared with single-pin and double-pin sanitary clamps, it provides greater clamping strength and can withstand higher operating pressures after installation. It is ideal for high-pressure fluid systems and demanding processing environments.
Features
- High-strength clamping design
- Designed for high-pressure applications
- Secure and reliable connection
- Ideal for high-pressure fluid transfer
- Higher clamping force than single-pin and double-pin clamps
Details
Available Sizes: 1/2"–8"
Material: SUS304
