IDF-13R Round Slotted Nut

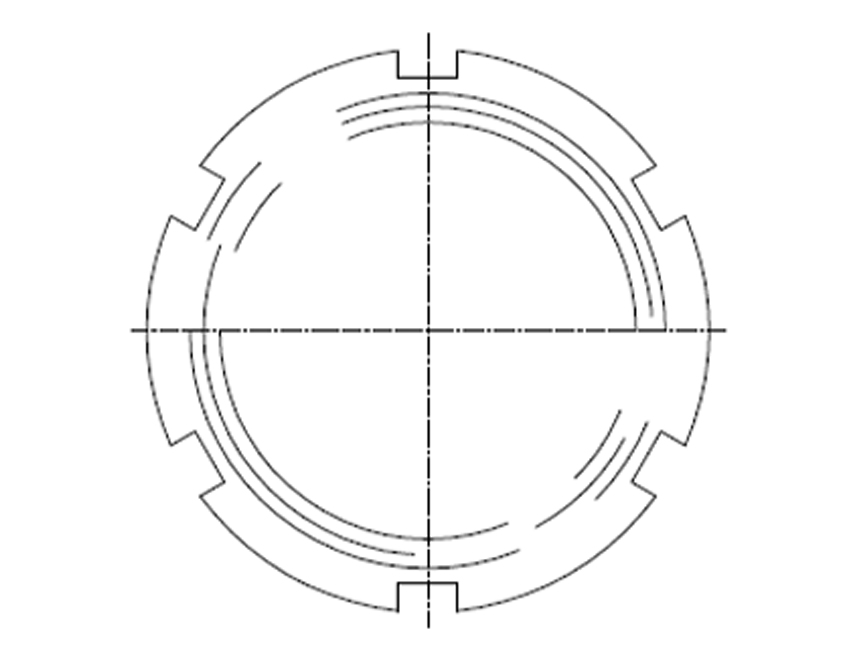

Grooved nut with a round groove design for easy installation and removal.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–4"

Material: SS304

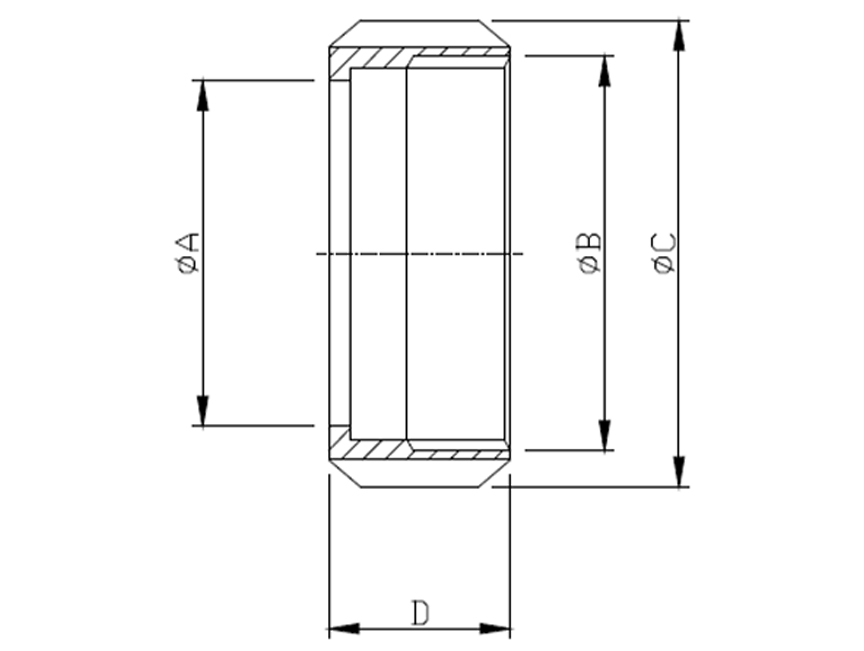

Specifications

UNIT: mm

SIZE ØA ØB ØC D
1" 30.5 38.02x1/8T 48 30
1.5" 43.5 51.54x1/8T 64 30
2" 57 65.05x1/8T 77 30
2.5" 70.7 78.56x1/8T 91 30
3" 83.3 92.08x1/8T 106 30
4" 112 126.79x1/6T 142 35
