IDF-14AH Blank Liner

Blank cap female adapter for closing the end of sanitary tubing. Suitable for equipment maintenance and tube line closure.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–4"

Material: SS304, SS316L

Specifications

UNIT: mm

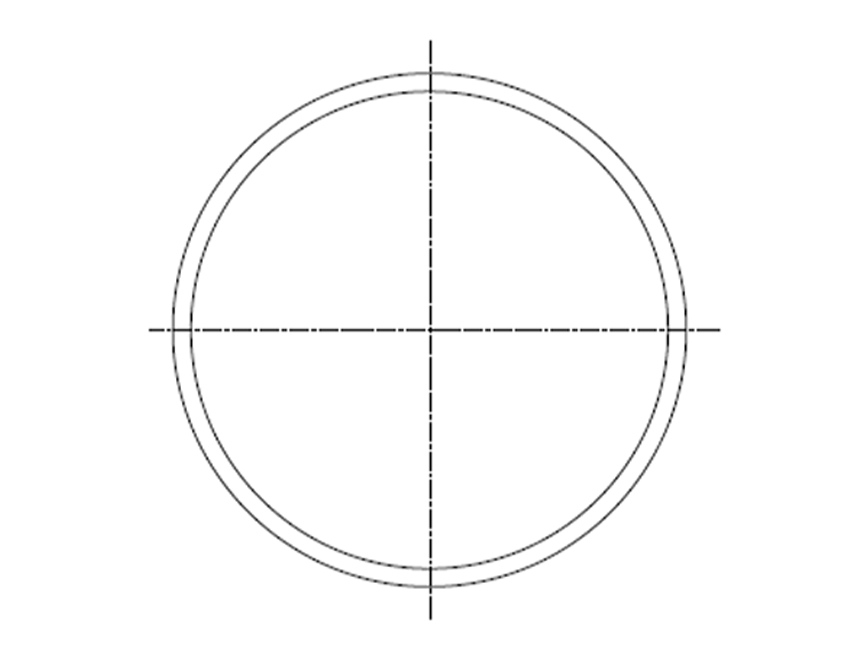

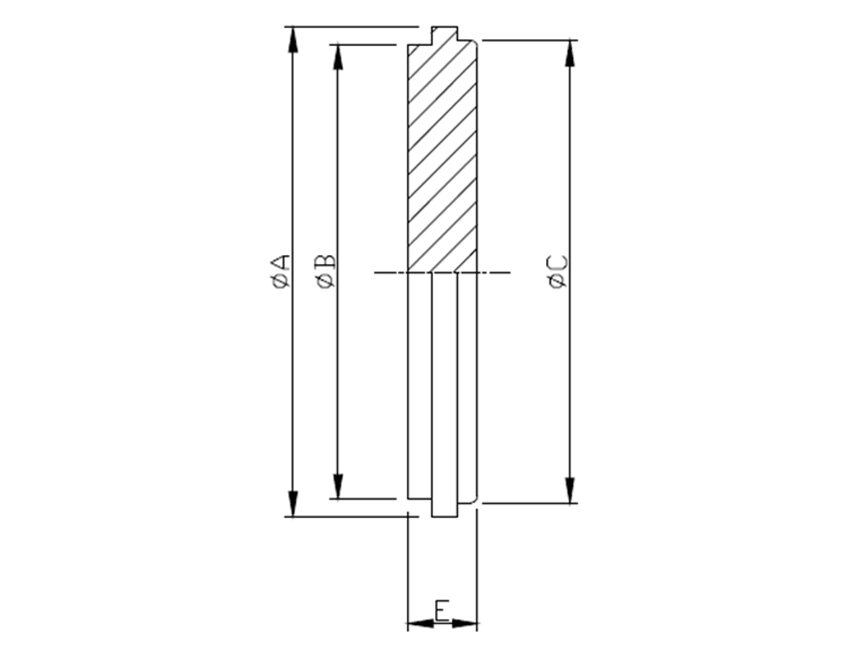

SIZE ØA ØB ØC E
1" 33.8 29.5 29.2 10.5
1.5" 47 42.5 42.7 10.5
2" 60.5 55.7 56.2 10.5
2.5" 74 68.8 69.9 10.5
3" 87.5 81.9 82.6 10.5
4" 120.6 111 111.1 12.6
