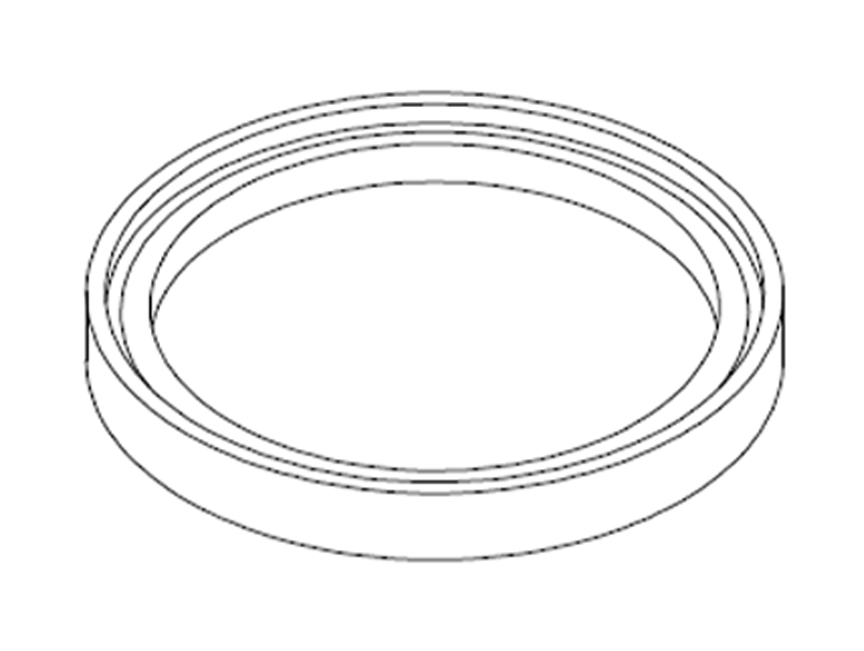

Seal for IDF Union

Gasket designed for IDF sanitary unions, providing a stable and reliable seal for sanitary tubing systems.

  1. Inquiry
  2. Back
  3. Prev
Details

Size: 1"–4"

Material: EPDM, Silicone, Buna-N, Viton

Specifications

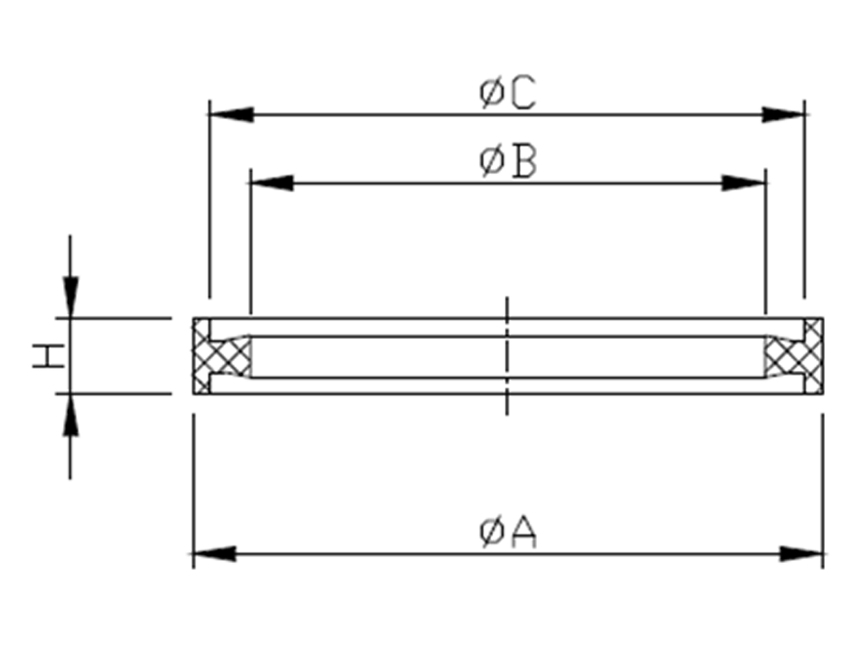

UNIT: mm

SIZE ØA ØB ØC H
1" 32.5 23.2 29.2 7
1.5" 46 35.9 42.7 7
2" 59.5 48.6 56.2 7
2.5" 73.2 61.3 69.9 7
3" 86.5 74 82.6 7
4" 119 98.6 111 9.6
