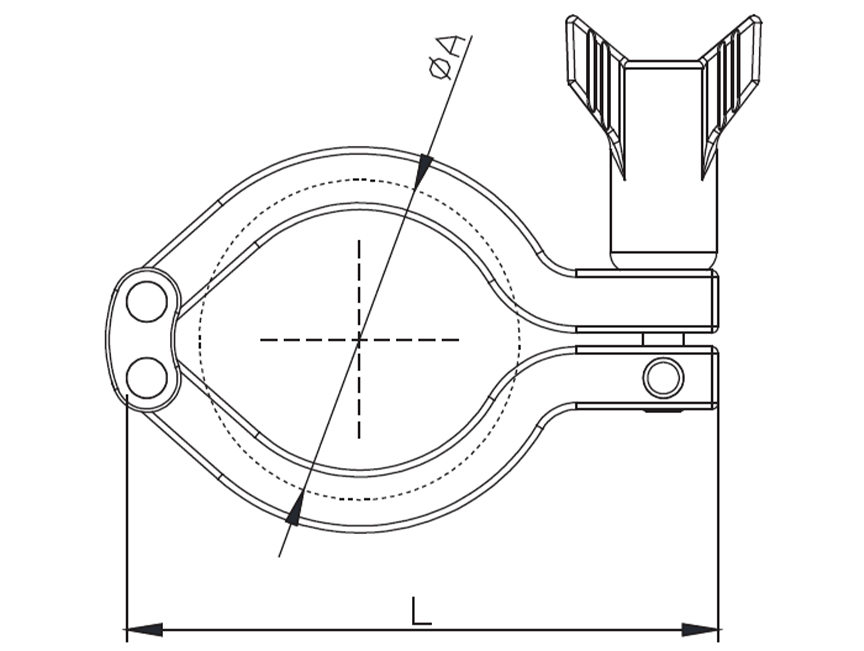

Next UNIT: mm
| SIZE | ØA | L |
| 1"-1.5" | 53.9 | 87 |
| 2" | 67.4 | 98 |
| 2.5" | 80.9 | 115 |
| 3" | 94.4 | 129 |
| 4" | 122.4 | 160 |
Heavy Duty Clamp Double Pin
Product Model: 13MHHM
The Double Pin Sanitary Clamp features a dual-bolt design that provides more even clamping force and enhanced sealing performance. It is ideal for larger sanitary tubing systems and applications requiring higher operating pressures.
Features
- Dual-bolt design for more uniform clamping force
- Enhanced sealing performance
- Suitable for higher-pressure applications and larger tubelines
- Easy to install, remove, and maintain
Details
Available Sizes: 1"–4"
Material: SUS304
