B24W Tube Hanger

Product Model: B24

The B24W Hexagonal Sanitary Tube Hanger is available with either a white PP sleeve or a black rubber grommet, helping reduce tube wear and vibration while providing secure support for a wide range of sanitary tubing systems.

  1. Inquiry
  2. Back
  3. Prev
Features
  • Hexagonal design
  • Available with a white PP sleeve or black rubber grommet
  • Reduces vibration and tube wear
Details

Available Sizes: 1/2"–6"

Material: SUS304, White PP Sleeve / Black Rubber Grommet

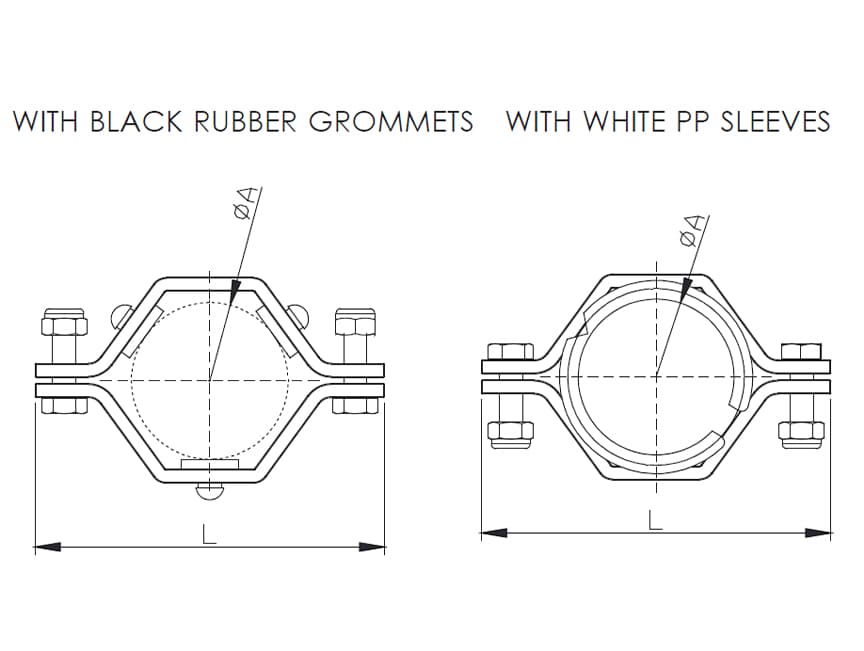

Specifications

UNIT: mm

SIZE ØA L
1/2" 12.7 64
3/4" 19.05 75
1" 25.4 87
1.5" 38.1 95
2" 50.8 110
2.5" 63.5 123
3" 76.2 140
4" 101.6 167
6" 152.4 225
