Tube Hanger with Rubber Insert

Product Model: 13TH-R

The 13TH-R Sanitary Tube Hanger features a red rubber insert that helps absorb vibration and reduce friction, providing enhanced protection for sanitary tubing systems. It is ideal for applications where vibration reduction and tube stability are required.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Features
  • Red rubber insert for vibration damping
  • Reduces friction and operating noise
  • Improves tube stability and protection
Details

Available Sizes: 3/4"–4"

Material: SUS304, Red Rubber Insert

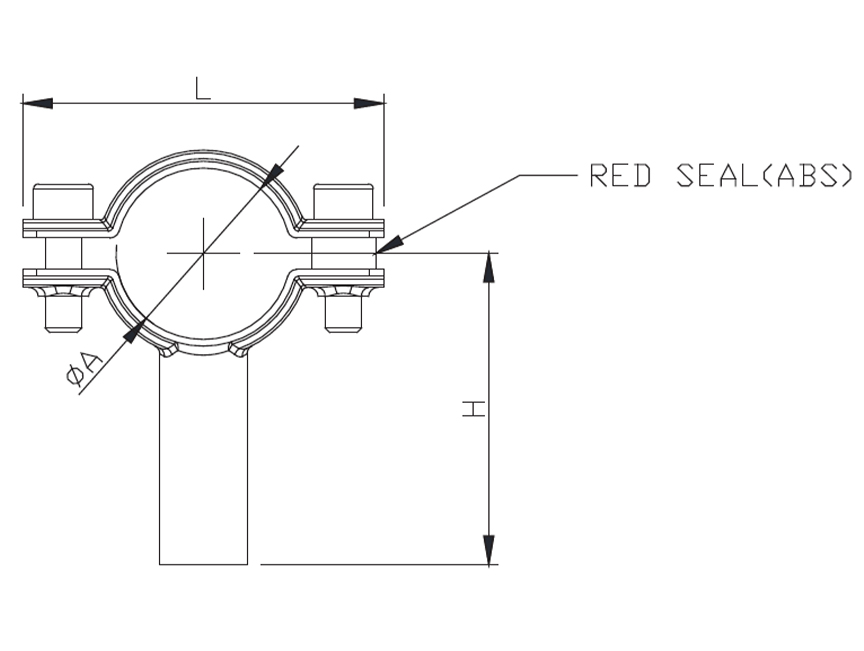

Specifications

UNIT: mm

SIZE ØA H L
3/4" 19.05 60 60
1" 25.4 63 66
1.5" 38.1 70 78
2" 50.8 76 92
2.5" 63.5 82 104
3" 76.2 89 119
4" 101.6 101 149
