SMS Tube Hanger with Tube Support

Product Model: SMS-13TH-Type2

The SMS-13TH Type 2 Sanitary Tube Hanger is supplied with a 100 mm support rod, allowing direct installation in SMS sanitary tubing systems while providing enhanced support stability and improved installation efficiency.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Features
  • Supplied with a 100 mm support rod
  • Designed to SMS sanitary standards
  • Quick and easy installation
  • Compatible with hex nuts or wing nuts
Details

Available Sizes: 1"–4"

Material: SUS304

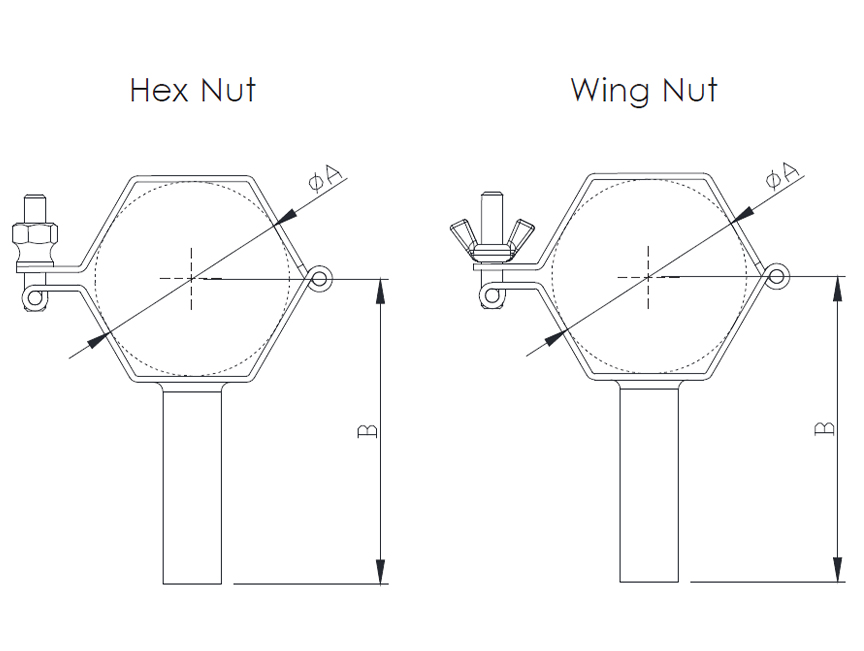

Specifications

UNIT: mm

SIZE ØA B
1" 25 100
1.5" 38 100
2" 51 100
2.5" 63.5 100
3" 76.1 100
4" 104 100
