2-Way Ball Valve Clamp End

The Tri-Clamp Sanitary 2-Way Ball Valve features a quick-connect Tri-Clamp end, allowing fast installation, removal, and cleaning. It is ideal for sanitary tubing systems that require frequent disassembly and CIP (Clean-in-Place) cleaning.

  1. Inquiry
  2. Back
  3. Next
Product Information

Features

  • THREE PIECE FULL BORE / 1000 WOG
  • Locking Handle: Equipped with a locking mechanism to prevent accidental operation and ensure safe and reliable valve control.

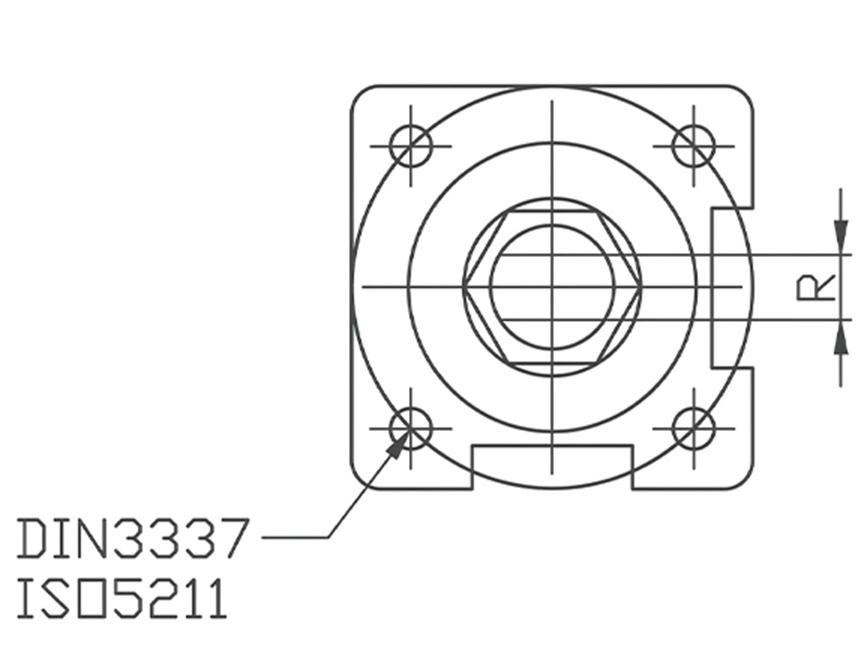

  • ISO 5211 Mounting Pad: Designed according to ISO 5211 standards, allowing easy installation of pneumatic or electric actuators for future automation integration.
  • Ball & Ends Polished to Ra 20 μin: Precision polished ball and end surfaces reduce surface roughness, minimize product residue, and meet sanitary processing requirements.
  • Full-Covered Seat Design
  • Corrosion-Resistant Materials: Manufactured from SUS316 stainless steel with PTFE (Teflon) ball seats, offering excellent corrosion resistance, chemical resistance, and superior sealing performance.
  • Wide Range of Applications: Suitable for high-purity sanitary fluid systems in food, beverage, dairy, biotechnology, pharmaceutical, cosmetic, and other industries.
  • Available Sizes: 1/2" to 4".

Specifications

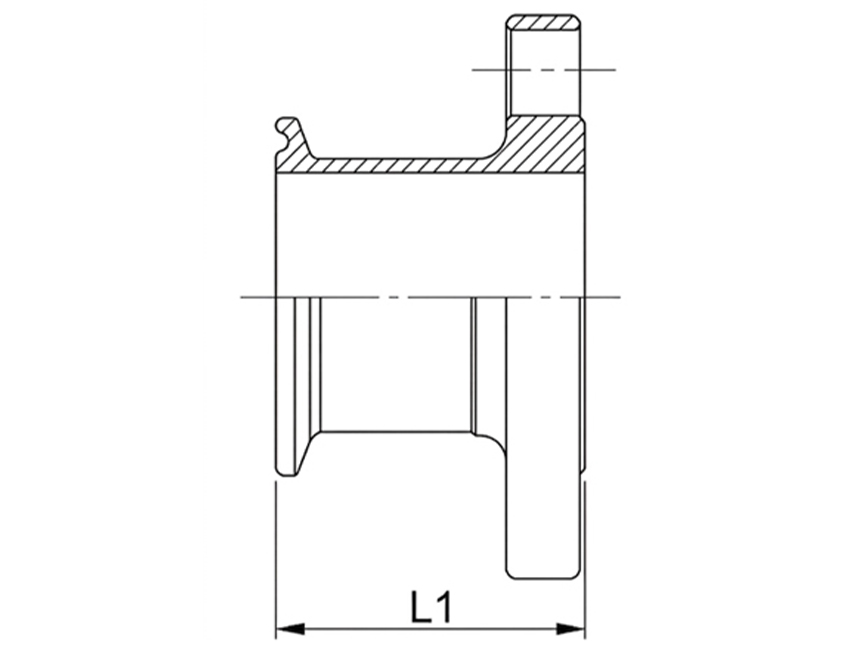

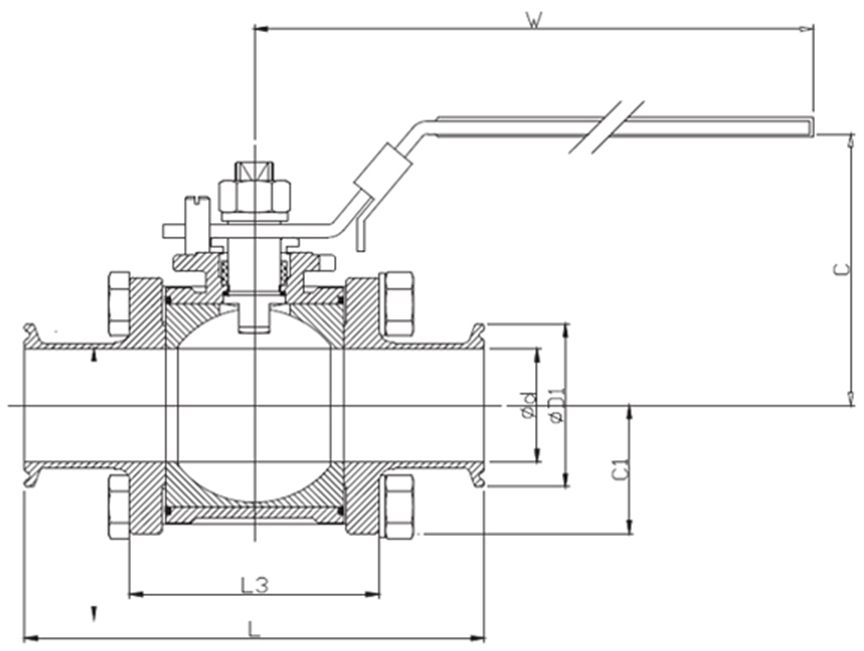

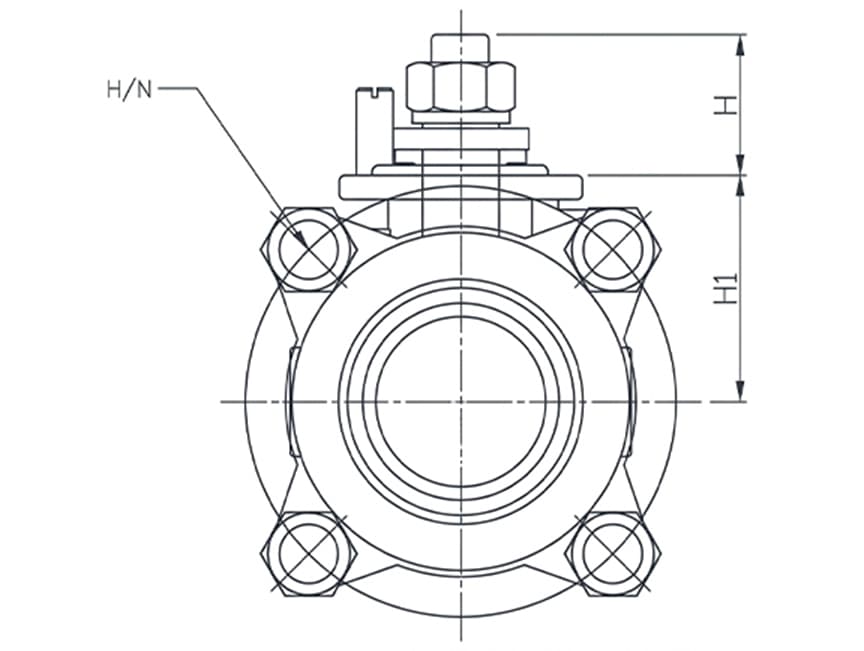

SIZE DN ISO 5211 H C L W Ød ØD L1 L3 C1 H1 R H/N TORQUE
IN/LBS
1/2" 15 F03 18 60 89 132 9.5 25.4 32.8 43.5 24.5 29.5 5 M8xP1.25 4 46.2 42
3/4" 20 F03 18.5 65 101 132 15.9 25.4 36.5 48 27 34 5 M8xP1.25 4 53 58
1" 25 F04 22.5 69 114 165 22.2 50.4 40 53 29.2 34.5 6.5 M8xP1.25 4 60 83
1.5" 40 F05 29.6 89 140 194 35 50.4 43.5 75 40.3 48 8.5 M12xP1.75 4 84.5 150
2" 50 F05 29.6 97 156 194 47.6 63.9 45.8 88.5 47.6 45 8.5 M12xP1.75 4 103.5 298
2.5" 65 F07 44.5 127 197 252 60.3 77.5 56 111 62 75.8 12 3/4"x10UNC 4 136 512
3" 80 F07 44.5 135 229 252 73 90.9 64.5 130 68.7 84.5 12 3/4"x10UNC 4 155 685
4" 100 F10 48.8 159 243 333 97.4 118.9 60.6 153.5 100.5 105 16 1"x8unc 6 193 996

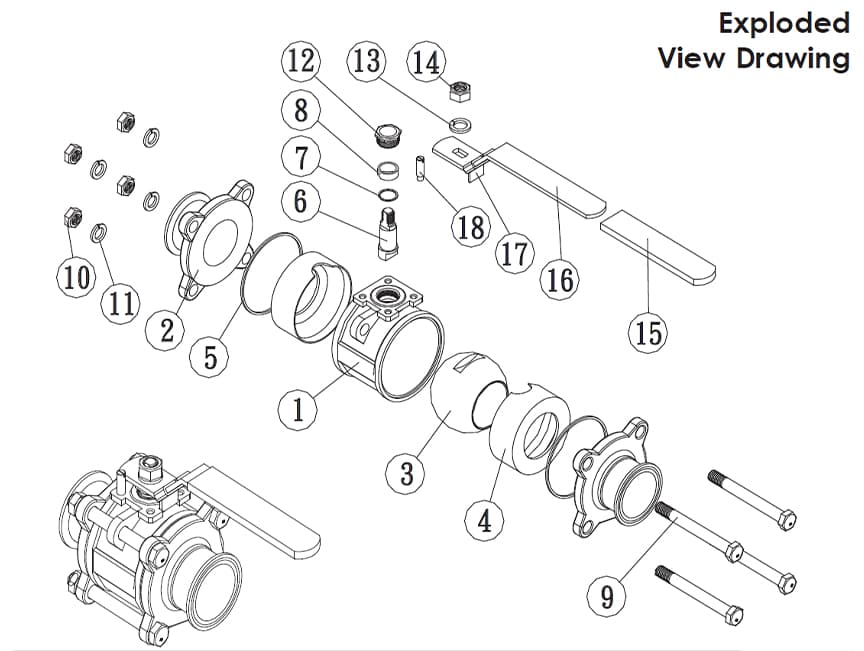

Exploded View
NO PART NAME SPECIFICATION QTY
1 BODY ASTM A351 CF8M 1
2 END CAP ASTM A351 CF8M 2
3 BALL A351-CF8M 1
4 SEAT PTFE 2
5 GASKET PTFE 2
6 STEM ANSI-316 1
7 THRUST WASHER PTFE 2
8 STEM PACKINGS PTFE 1
9 BOLTS ANSI-304 4
10 BOLT NUTS ANSI-304 4
11 BOLT WASHERS ANSI-304 4
12 GLAND ANSI-304 1
13 WASHER(HANDLE) ANSI-304 1
14 HANDLE NUT ANSI-304 1
15 PLASTIC COVER PLASTIC 1
16 HANDLE ANSI-304 1
17 LOCKING DEVICE ANSI-304 1
18 STOP PIN ANSI-304 1
Pressure & Temperature Rating
