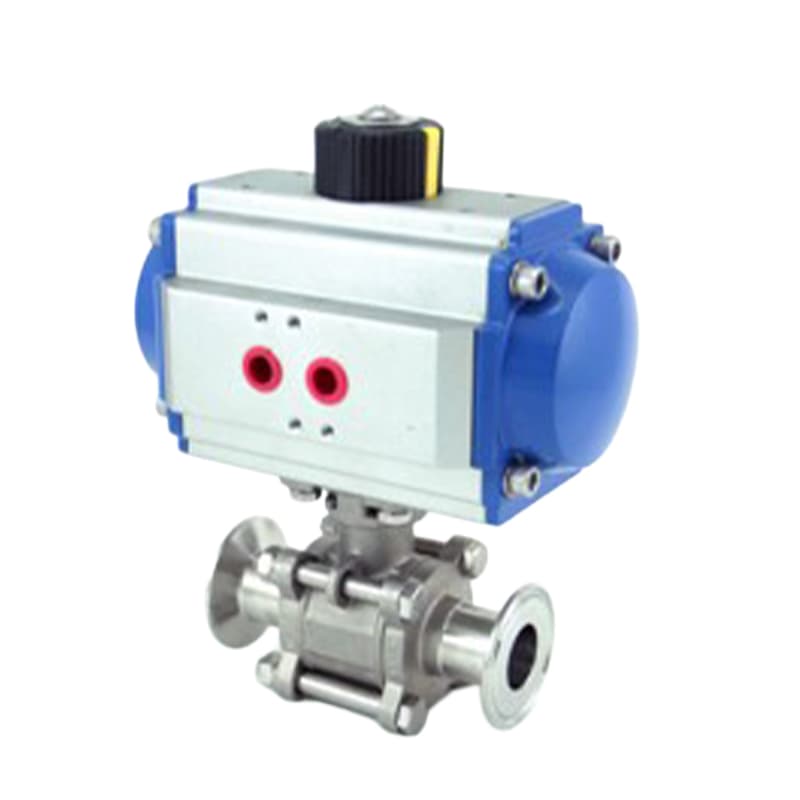

Automatic/Pneumatic 3-Piece 2-Way Ball Valve (Clamp End)

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Product Information

Features

  • Pressure Rating: 1000 / 800 / 600 PSI (depending on valve size)
  • Blow-Out Proof Stem with Solid Ball design for enhanced safety and durability
  • High-performance design for reliable flow control
  • Extended neck with ISO 5211 direct mounting pad for easy installation of pneumatic or electric actuators
  • Precision investment cast stainless steel body
  • Material: ASTM A351 CF8M
  • Ball and end connections polished to 20 Ra surface finish
  • Full cavity-filled PTFE seats provide excellent sealing performance
  • Available sizes: 1/2" to 4"

Specifications

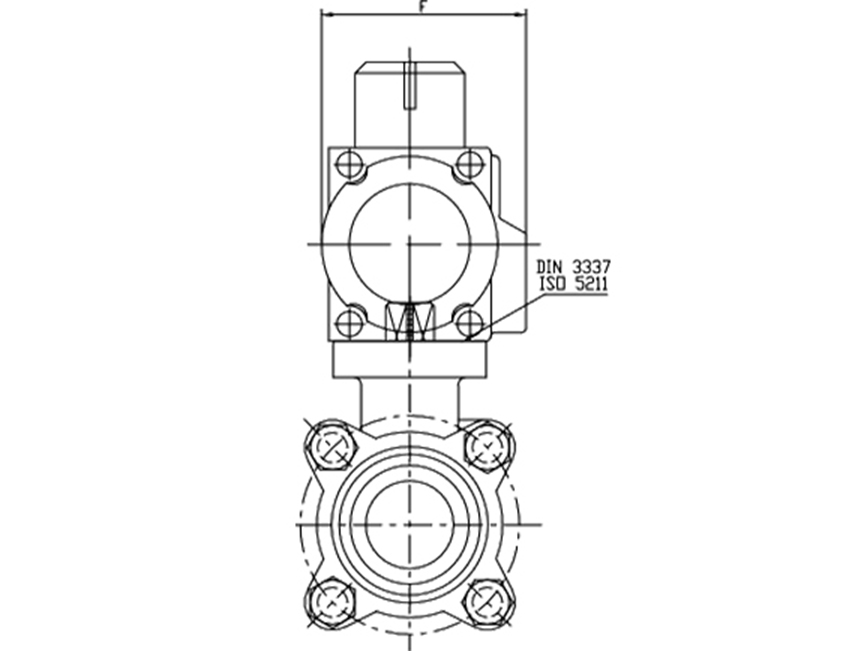

DIMENSION ( MM)

BALL VALVE / SERIE SV-3HCS
SIZE DN ISO-5211 R L Ød ØD INCH
TORQUE
1/2" 15 F03 / F04 9 89 9.5 25.4 60
3/4" 20 F03 / F04 9 110 15.8 25.4 75
1" 25 F04 / F05 11 114 22.2 50.4 105
1-1/2" 40 F05 / F07 14 140 35 50.4 190
2" 50 F05 / F07 14 156 47.6 63.9 275
2-1/2" 65 F07 / F10 17 197 60.3 77.5 680
3" 80 F07 / F10 17 229 73 90.9 890
4" 100 F10 / F12 22 243 97.4 118.9 1105
BM-DA DN D F G K
32-DA 15 21 46 105 110
32-DA 20 21 46 107 110
50-DA 25 26 65 140 147
75-DA 40 26 81 181 184
75-DA 50 26 81 189 184
100-DA 65 30 110 243 268
125-DA 80 30 128 252 301
125-DA 100 30 128 306 301

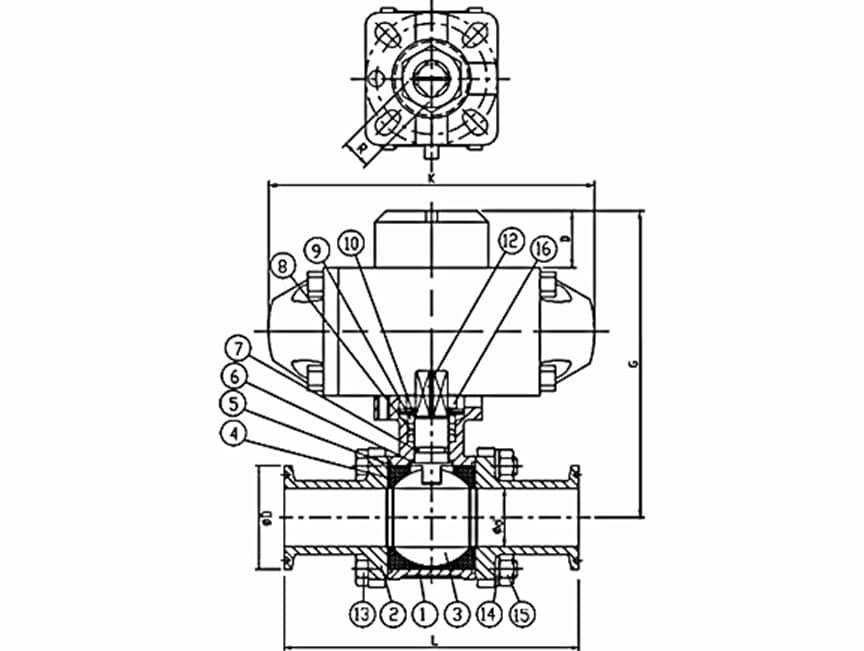

Exploded View
ITEM PARTS MATERIAL QTY
1 BODY A351-CF8M 1
2 CAP ANSI CF8M 2
3 BALL A351-CF8M 1
4 SEAT PTFE 2
5 GASKET PTFE 2
6 THRUST WASHER PTFE 1
7 O-RING VITION 1
8 STEM PACKING PTFE 1
9 RING AISI 304 1
10 BEVEL WASHER AISI 301 2
11 STEM AISI 316 1
12 BOLT AISI 304 4/6
13 BOLT WASHER ANSI-304 4/8/12
14 BOLT NUT AISI 304 4/8/12
15 PREVAILING NUT AISI 304 1

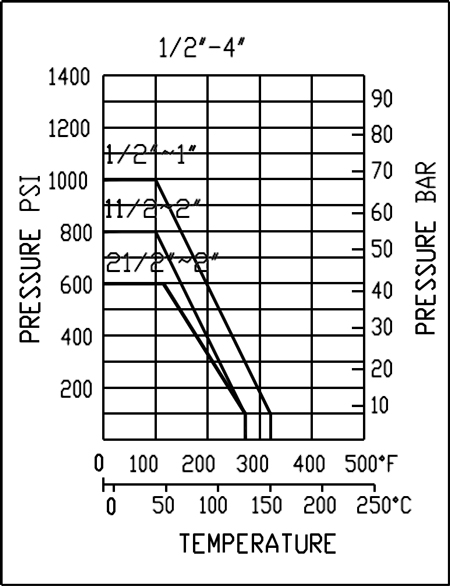

PRESSURE TEMPERATURE RATING
