2-Way Ball Valve Weld End

The Butt-Weld Sanitary 2-Way Ball Valve features a permanent Butt-Weld connection, providing a strong and leak-resistant joint for sanitary piping systems. The smooth internal flow path minimizes product residue and helps maintain a high level of cleanliness, making it ideal for permanently installed sanitary processing applications.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Product Information

Features

  • THREE PIECE FULL BORE / 1000 WOG
  • Locking Handle: Equipped with a locking mechanism to prevent accidental operation and ensure safe and reliable valve control.

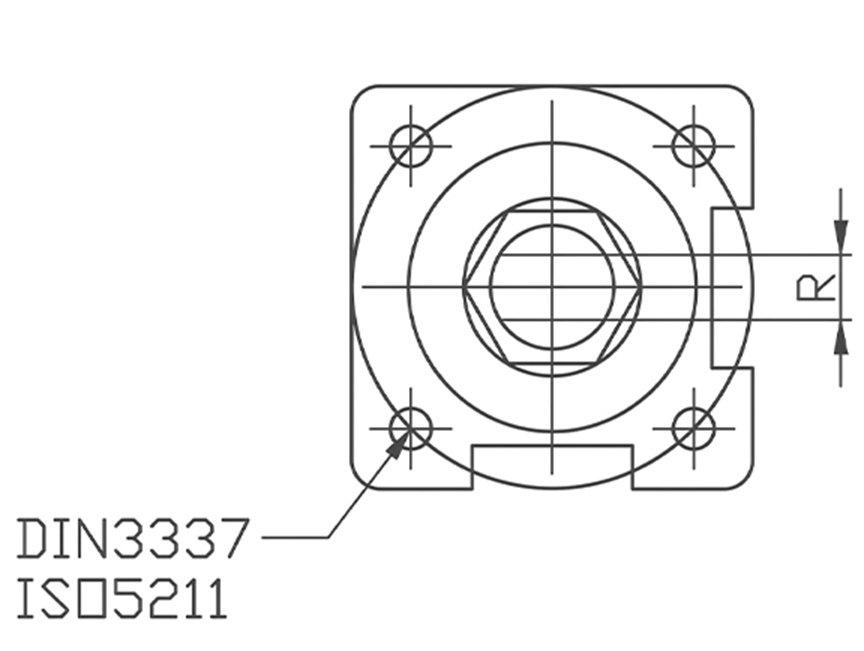

  • ISO 5211 Mounting Pad: Designed according to ISO 5211 standards, allowing easy installation of pneumatic or electric actuators for future automation integration.
  • Ball & Ends Polished to Ra 20 μin: Precision polished ball and end surfaces reduce surface roughness, minimize product residue, and meet sanitary processing requirements.
  • Full-Covered Seat Design
  • Corrosion-Resistant Materials: Manufactured from SUS316 stainless steel with PTFE (Teflon) ball seats, offering excellent corrosion resistance, chemical resistance, and superior sealing performance.
  • Wide Range of Applications: Suitable for high-purity sanitary fluid systems in food, beverage, dairy, biotechnology, pharmaceutical, cosmetic, and other industries.
  • Available Sizes: 1/2" to 4".

Specifications

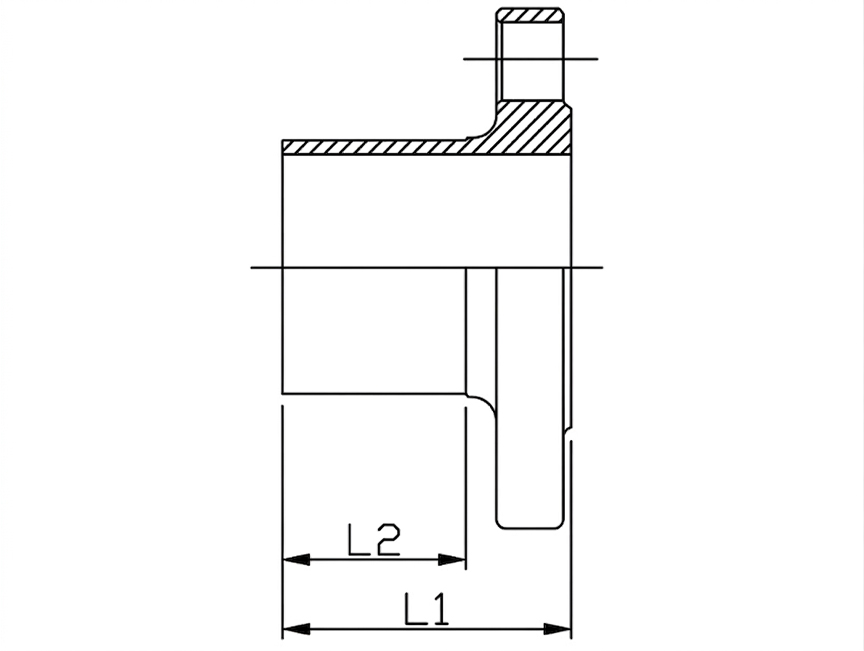

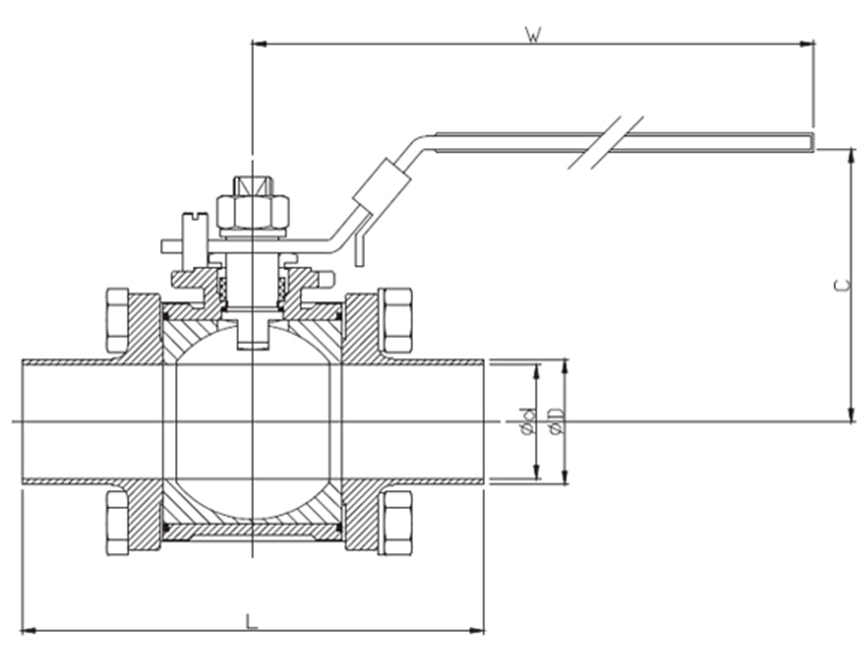

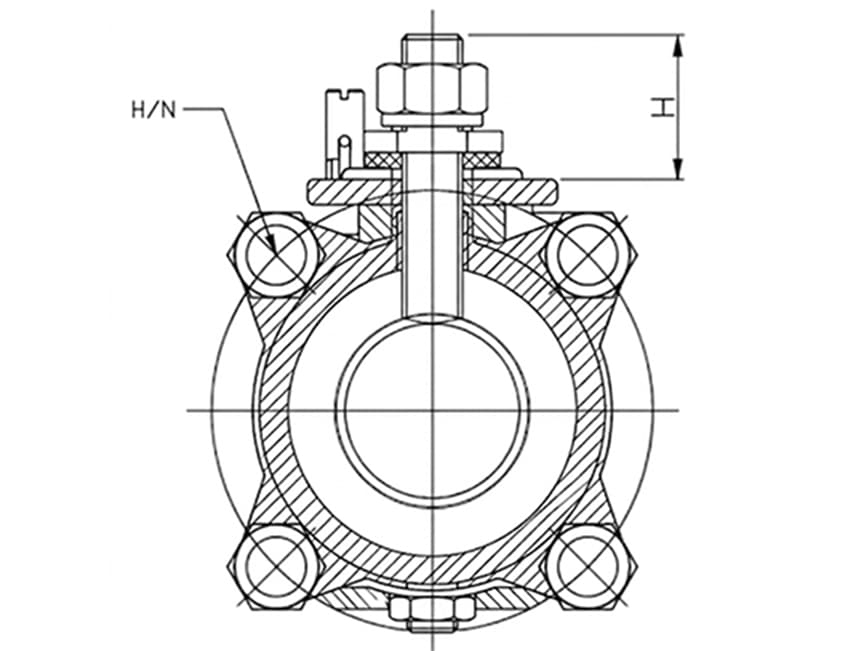

SIZE DN ISO-5211 H C R L W Ød ØD L1 L2 TORQUE
IN/LBS		 H/N
1/2" 15 F03 18 60 5 89 132 9.5 12.7 32.75 20 42 4
3/4" 20 F03 18.5 65 5 101 132 15.9 19.1 36.5 20 58 4
1" 25 F04 22.5 69 6.5 114 165 22.2 25.4 40 25 83 4
1.5" 40 F05 29.6 89 8.5 140 194 35 38.1 43.5 25 150 4
2" 50 F05 29.6 97 8.5 156 194 47.6 50.8 45.75 25 298 4
2.5" 65 F07 44.5 127 12 197 252 60.3 63.5 56 25 512 4
3" 80 F07 44.5 135 12 229 252 73 76.2 64.5 25 685 4
4" 100 F10 48.8 159 16 243 333 97.4 101.6 60.6 25 996 6

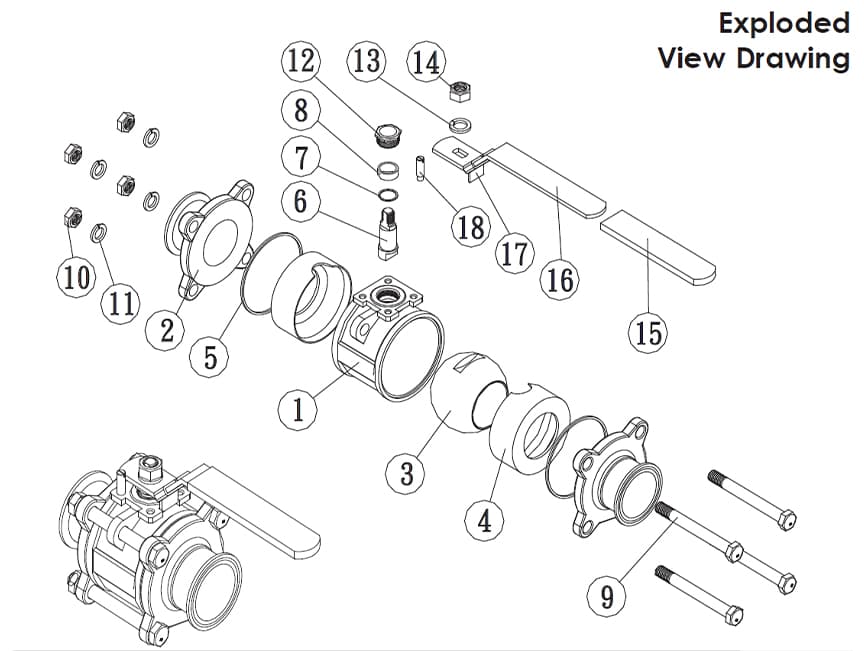

Exploded View
NO PART NAME SPECIFICATION QTY
1 BODY ASTM A351 CF8M 1
2 END CAP ASTM A351 CF8M 2
3 BALL A351-CF8M 1
4 SEAT PTFE 2
5 GASKET PTFE 2
6 STEM ANSI-316 1
7 THRUST WASHER PTFE 2
8 STEM PACKINGS PTFE 1
9 BOLTS ANSI-304 4
10 BOLT NUTS ANSI-304 4
11 BOLT WASHERS ANSI-304 4
12 GLAND ANSI-304 1
13 WASHER(HANDLE) ANSI-304 1
14 HANDLE NUT ANSI-304 1
15 PLASTIC COVER PLASTIC 1
16 HANDLE ANSI-304 1
17 LOCKING DEVICE ANSI-304 1
18 STOP PIN ANSI-304 1

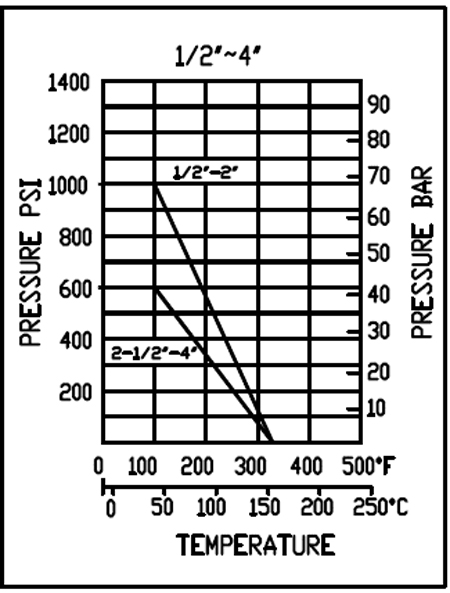

Pressure & Temperature Rating
