Automatic/Pneumatic 4-Piece 3-Way Ball Valve (Clamp End)

  1. Inquiry
  2. Back
  3. Prev
Product Information

Features

  • Pressure Rating: 1000 / 800 / 600 PSI (depending on valve size)

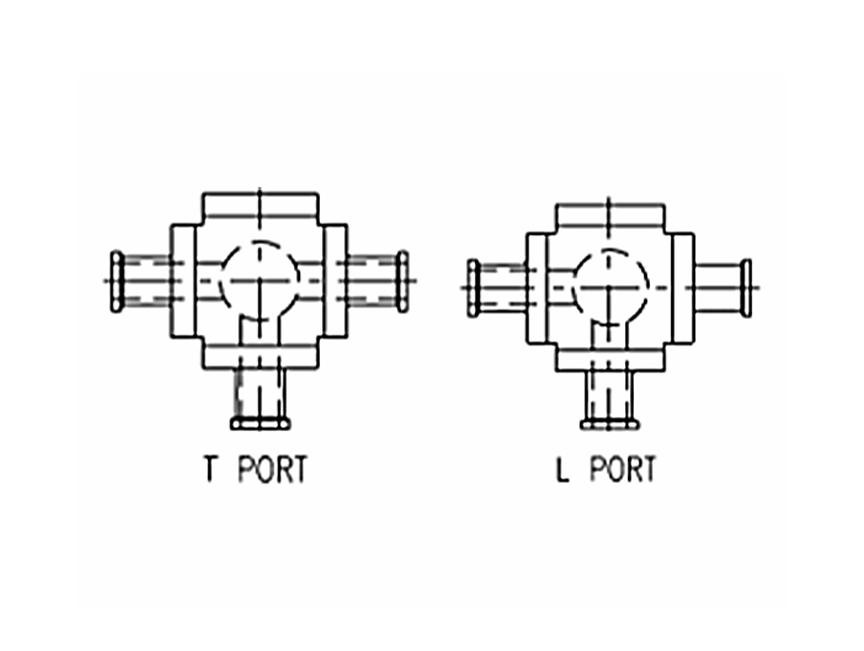

  • Available with T-Port and L-Port ball configurations to accommodate flow diversion, switching, and mixing applications
  • Blow-Out Proof Stem with Solid Ball design for enhanced safety and durability
  • High-performance design for reliable and efficient flow control
  • Extended neck with ISO 5211 direct mounting pad for easy installation of pneumatic or electric actuators
  • Precision investment cast stainless steel body
  • Material: ASTM A351 CF8M
  • Ball and end connections polished to a 20 Ra surface finish
  • Full cavity-filled PTFE seats provide excellent sealing performance
  • Available sizes: 1/2" to 4"

Specifications

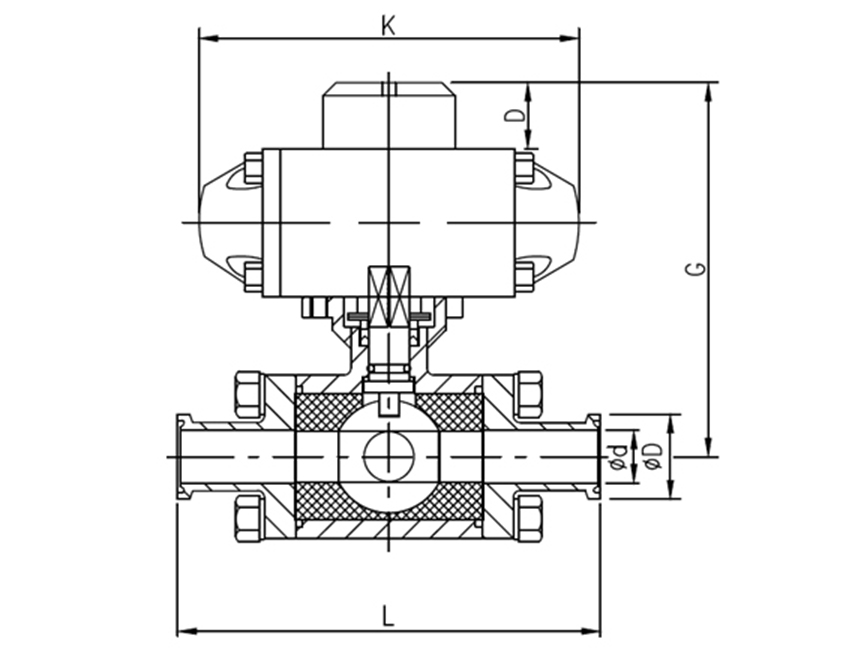

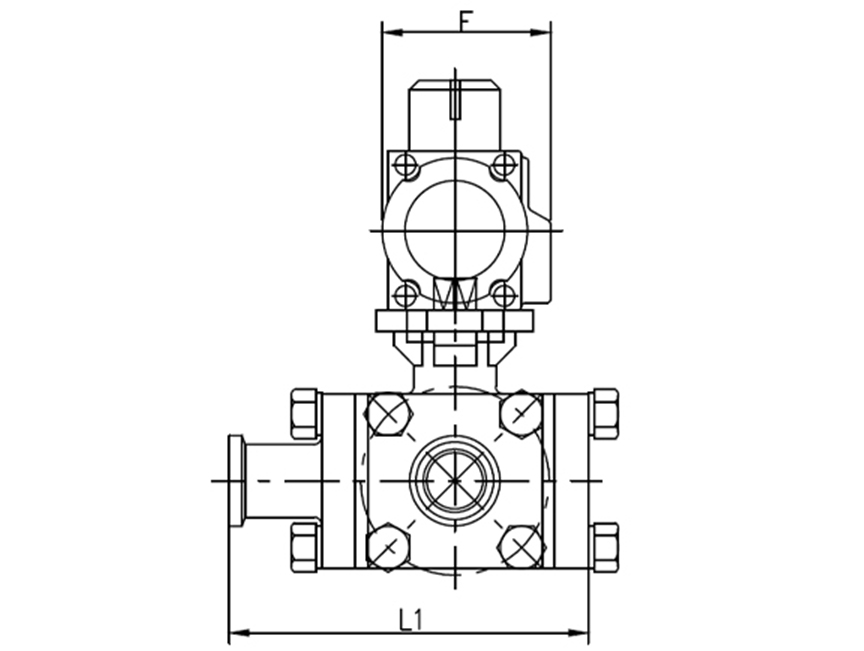

DIMENSION ( MM)

BALL VALVE / SERIE SV-4HCS
SIZE DN ISO-5211 L1 L Ød ØD INCH/LBS
TORQUE
1/2" 15 F03 / F04 89 118 9.5 25.4 60
3/4" 20 F03 / F04 96 127 15.8 25.4 75
1" 25 F04 / F05 115 153 22.2 50.4 105
1-1/2" 40 F05 / F07 137 175 35 50.4 190
2" 50 F05 / F07 153 190 47.6 63.9 275
2-1/2" 65 F07 / F10 166 228 60.3 77.5 680
3" 80 F07 / F10 193 261 73 90.9 890
4" 100 F10 / F12 247 290 97.4 118.9 1105
BM-DA DN D F G K
32-DA 15 21 46 107 110
32-DA 20 21 46 114 110
50-DA 25 26 65 149 147
75-DA 40 26 81 192 184
75-DA 50 26 81 200 184
100-DA 65 30 110 251 268
125-DA 80 30 128 296 301
125-DA 100 30 128 301 301
Exploded View
ITEM PARTS MATERIAL QTY
1 BODY A351-CF8M 1
2 CAP A351-CF8M 4
3 BALL A351-CF8M 1
4 SEAT PTFE 4
5 GASKET PTFE 2
6 THRUST WASHER PTFE 1
7 O-RING VITION 1
8 STEM PACKING PTFE 1
9 RING AISI 316 1
10 BEVEL WASHER AISI 301 2
11 STOP PIN AISI 316 1
12 NUT AISI 304 1
13 STEM AISI 316 1
14 HANDLE AISI 304 1
15 SPRING WASHER AISI 304 16
16 BOLT AISI 304 16
17 PREVAILING AISI 304 1
18 NUT AISI 304 1

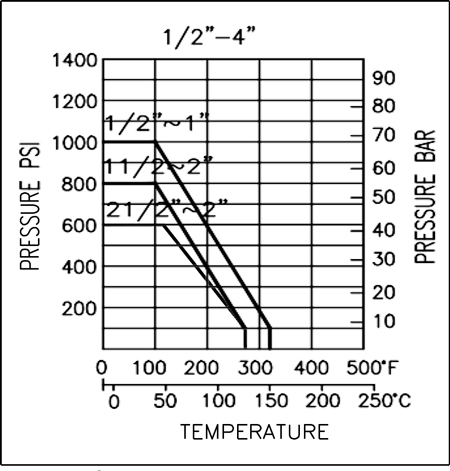

PRESSURE TEMPERATURE RATING
