Medium Weld Ferrule

Product Model: 3A-14MMP

Medium-length weld ferrule for stable and secure tube connections.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1/2"–12"

Material: SUS304, SUS316L

Standard: 3-A

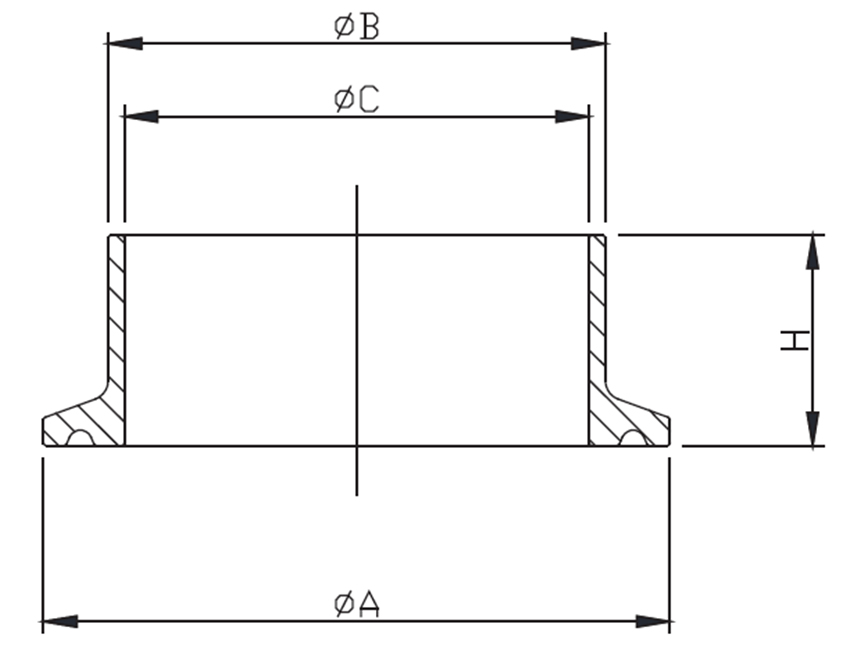

Specifications

UNIT: mm

SIZE ØA ØB ØC H
1/2" 25.2 12.7 9.4 21.5
3/4" 25.2 19.05 15.7 21.5
1" 50.5 25.4 22.2 21.5
1.5" 50.5 38.1 34.8 21.5
2" 64 50.8 47.5 21.5
2.5" 77.5 63.5 60.2 21.5
3" 91 76.2 72.9 21.5
4" 119 101.6 97.4 21.5
6" 166.8 152.4 146.8 28.6
8" 217.7 203.2 197.6 28.6
10" 268 254 247.2 28.6
12" 319 304.8 298 28.6
