UNIT: mm
| SIZE | ØA | ØB | H |

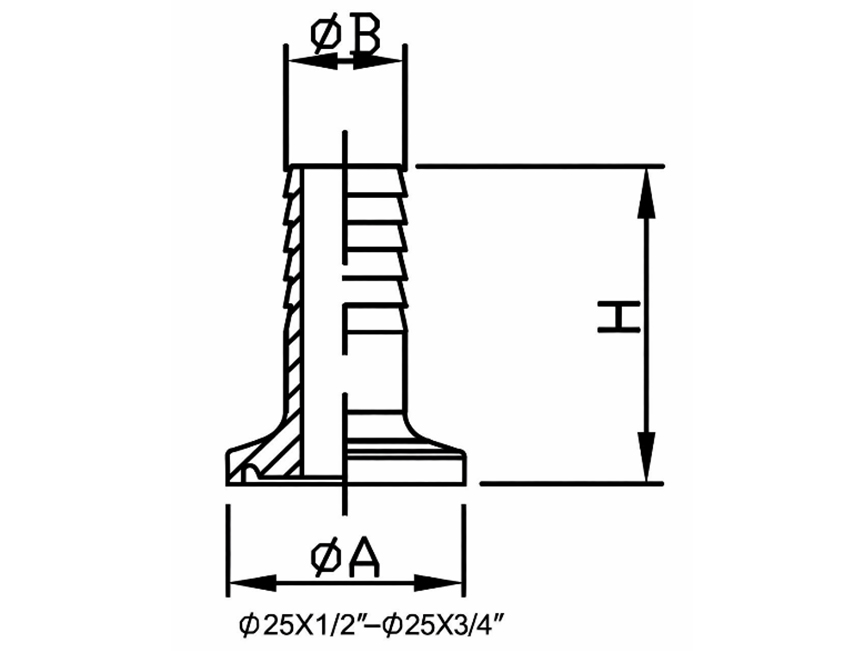

| ø25x3/8" | 25.4 | 9.6 | 38.1 |
| ø25x1/2" | 25.4 | 12.7 | 38.1 |
| ø25X3/4" | 25.4 | 19.05 | 38.1 |

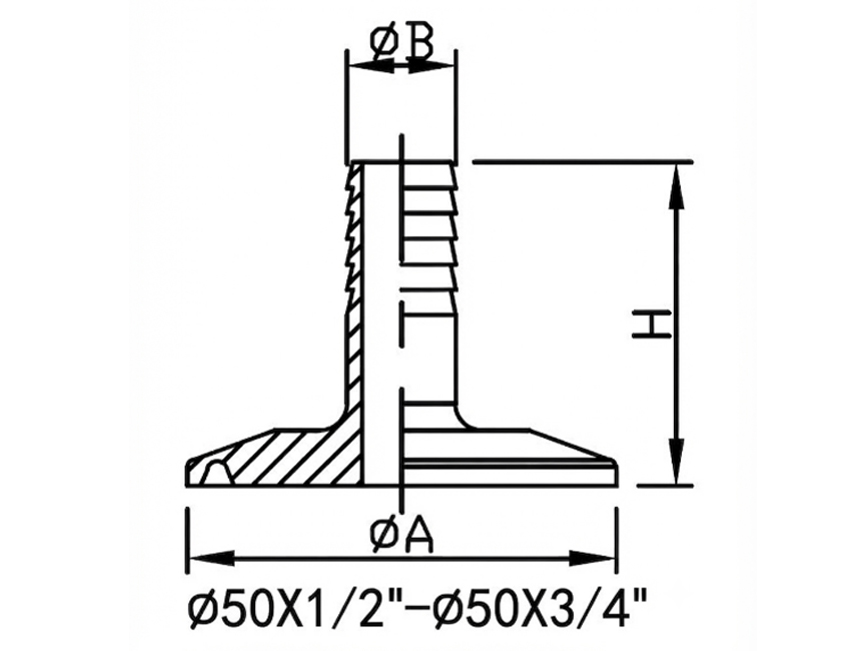

| ø50x3/8" | 50.5 | 9.6 | 38.1 |
| ø50x5/8" | 50.5 | 16 | 38.1 |
| ø50x1/2" | 50.5 | 12.7 | 38.1 |
| ø50x3/4" | 50.5 | 19.05 | 38.1 |

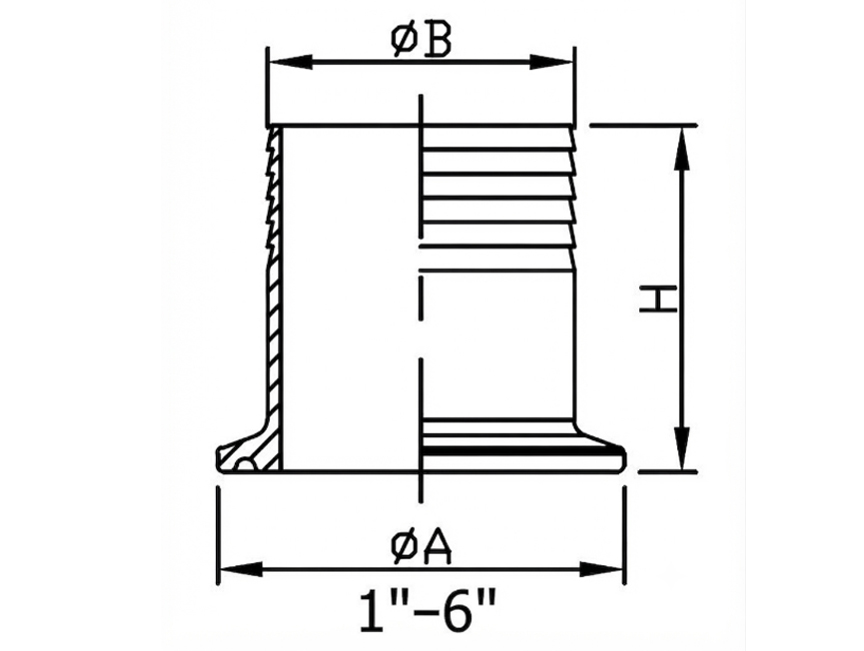

| 1" | 50.5 | 25.4 | 42.9 |
| 1.2" | 50.5 | 31.8 | 42.9 |
| 1.5" | 50.5 | 38.1 | 42.9 |
| 2" | 64 | 50.8 | 58.7 |
| 2.5" | 77.5 | 63.5 | 59.5 |
| 3" | 91 | 76.2 | 78.6 |
| 4" | 119 | 101.6 | 86.5 |
