Reducing Weld Ferrule

Product Model: 3A-14RWMP

Reducing ferrule for connecting tubes with different sizes.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1" × 1/2"–4" × 3"

Material: SUS304, SUS316L

Standard: 3-A

Specifications

UNIT: mm

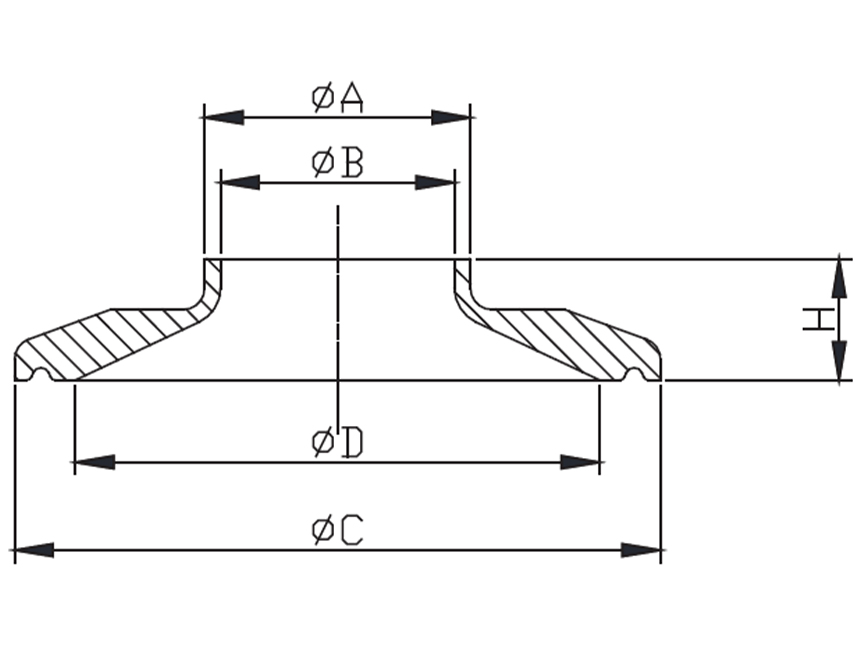

SIZE ØA ØB H ØC ØD
1"x1/2" 12.7 9.4 12.7 50.5 22.2
1"x3/4" 19.05 15.7 12.7 50.5 22.2
1.5"x1/2" 12.7 9.4 12.7 50.5 34.8
1.5"x3/4" 19.05 15.7 12.7 50.5 34.8
1.5"x1" 25.4 22.1 12.7 50.5 34.8
2"x1" 25.4 22.2 12.7 64 47.5
2"x1.5" 38.1 34.8 12.7 64 47.5
2.5"x1" 25.4 22.1 12.7 77.5 60.2
2.5"x1.5" 38.1 34.8 12.7 77.5 60.2
2.5"x2" 50.8 47.5 12.7 77.5 60.2
3"x1" 25.4 22.1 12.7 91 72.9
3"x1.5" 38.1 34.8 12.7 91 72.9
3"x2" 50.8 47.5 12.7 91 72.9
3"x2.5" 63.5 60.2 12.7 91 72.9
4"x1" 25.4 22.2 15.9 119 97.4
4"x1.5" 38.1 34.8 15.9 119 97.4
4"x2" 50.8 47.5 15.9 119 97.4
4"x2.5" 63.5 60.2 15.9 119 97.4
4"x3" 76.2 72.9 15.9 119 97.4
