UNIT: mm

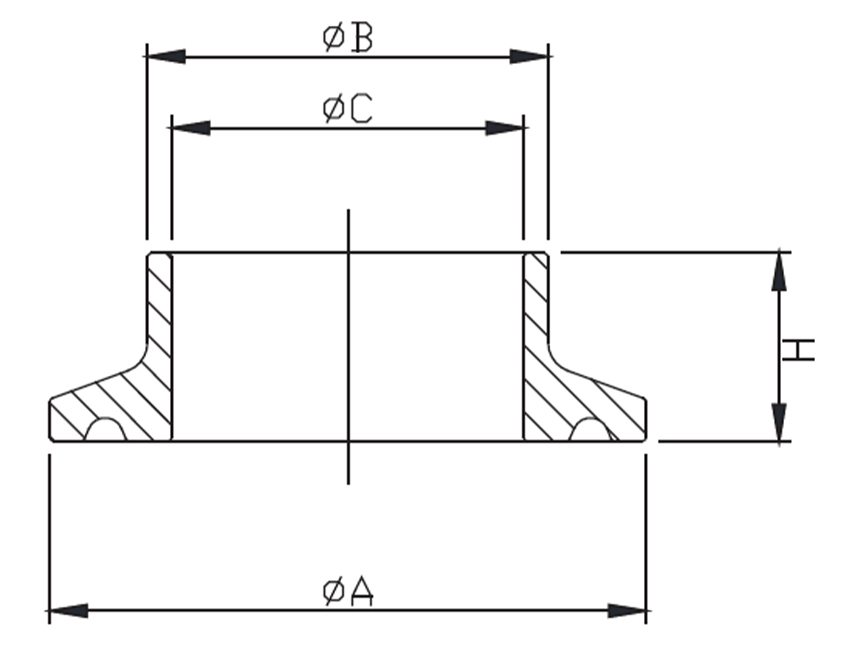

| SIZE | ØA | ØB | ØC | H |
| 1/2" | 25.2 | 12.7 | 9.4 | 12.7 |
| 3/4" | 25.2 | 19.05 | 15.7 | 12.7 |
| 1" | 50.5 | 25.4 | 22.2 | 12.7 |
| 1.5" | 50.5 | 38.1 | 34.8 | 12.7 |
| 2" | 64 | 50.8 | 47.5 | 12.7 |
| 2.5" | 77.5 | 63.5 | 60.2 | 12.7 |
| 3" | 91 | 76.2 | 72.9 | 12.7 |
| 4" | 119 | 101.6 | 97.4 | 15.9 |
| 6" | 166.8 | 152.4 | 146.8 | 22.2 |
| 8" | 217.7 | 203.2 | 197.6 | 23.8 |
| 10" | 268 | 254 | 247.2 | 23.8 |
| 12" | 319 | 304.8 | 298 | 23.8 |
