Recessless Ferrule

Product Model: 3A-14RMP

Commonly used in the dairy and poultry processing industries. Unlike traditional butt welding, this ferrule is placed over an existing tube and welded in place.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–4"

Material: SUS304, SUS316L

Connection: Tri-Clamp

Specifications

UNIT: mm

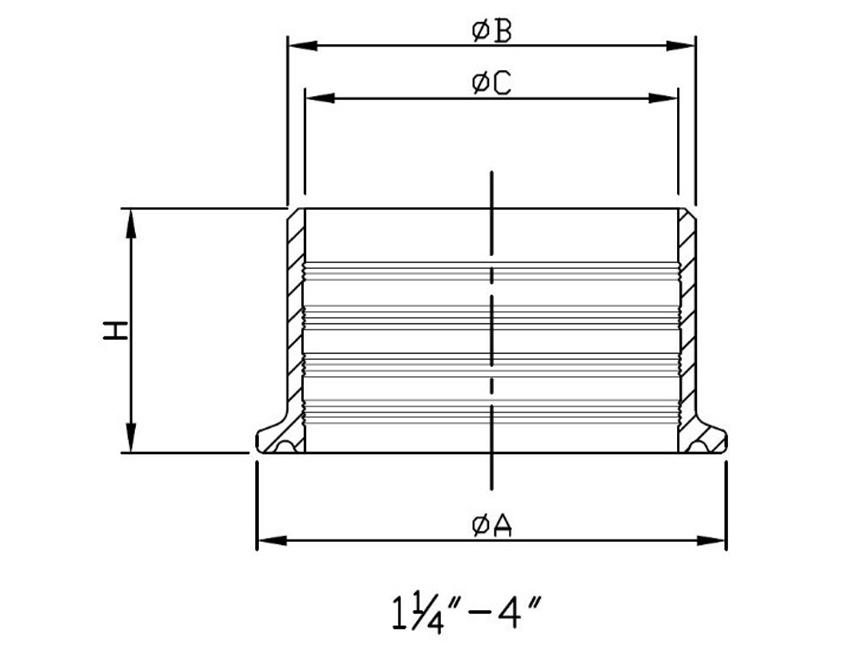

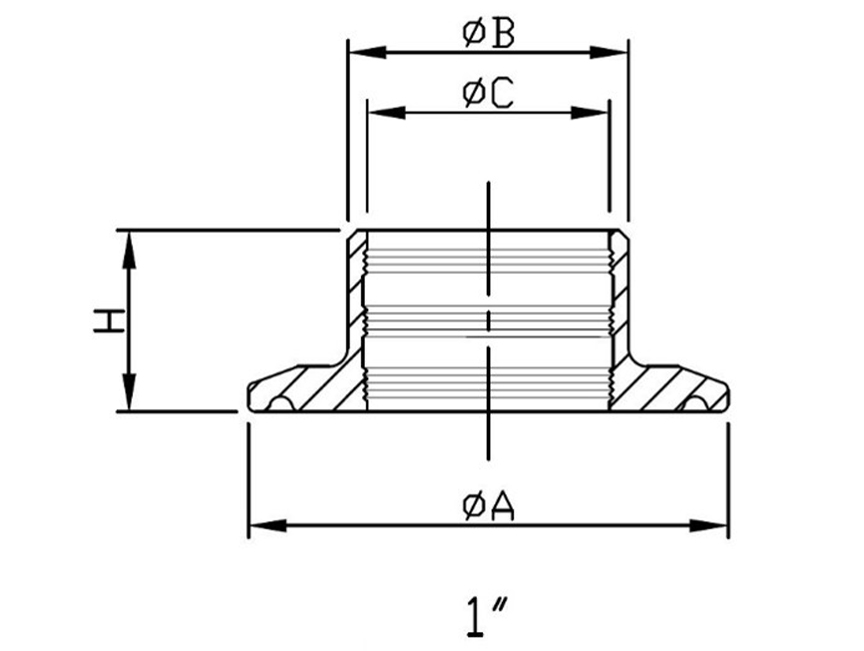

SIZE ØA ØB ØC H
1" 50.5 29.5 25.5 19.1
1.2" 50.5 36.3 31.9 28.6
1.5" 50.5 42.6 38.2 28.6
2" 64 55.7 50.9 33.3
2.5" 77.5 68.8 63.6 34.9
3" 91 81.9 76.3 36.5
4" 119 108.1 101.7 38.1
