DANSK-14(SA) Welding Liner

Welding liner make up one side of a union and can be used with a welding male and a gasket of choice. During installation, the round nut presses the welding liner and welding male together, compressing the gasket to form a reliable seal.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–6"

Material: SS304, SS316L

Specifications

UNIT: mm

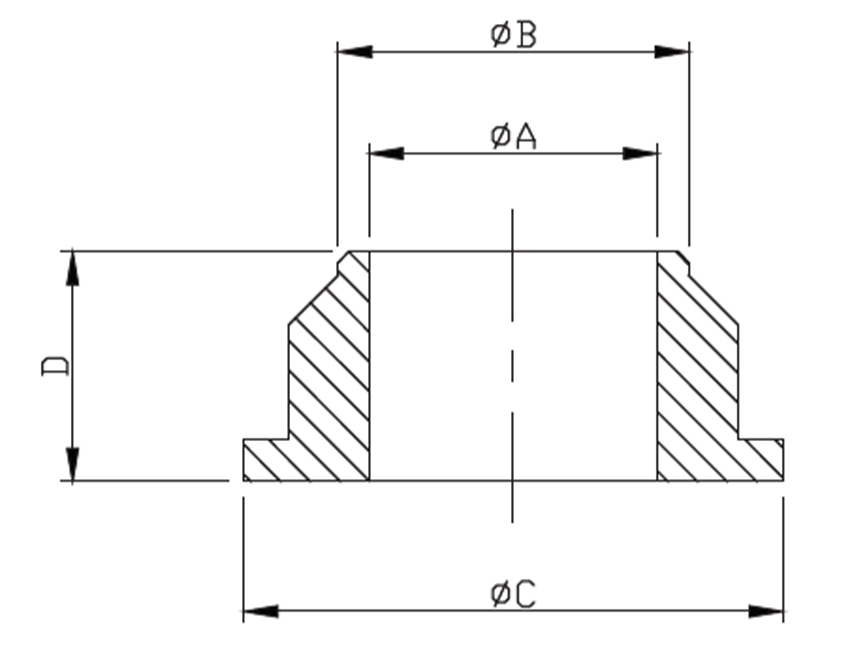

SIZE ØA ØB ØC D
1" 22.4 29 39.5 16
1.2" 28.5 35 47.5 16
1.5" 35 41 54 18
2" 47 54 67.5 20
2.5" 60 66 84 22
3" 72.2 80 95.5 24
4" 97.5 105 123 30
5" 123 132 153.5 30
6" 148 155.4 168 24
