DANSK-14R Expanding Welding Liner

Welding liner make up one side of a union and can be used with a welding male and a gasket of choice. During installation, the round nut presses the welding liner and welding male together, compressing the gasket to form a reliable seal.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"-4"

Material: SS304, SS316L

Specifications

UNIT: mm

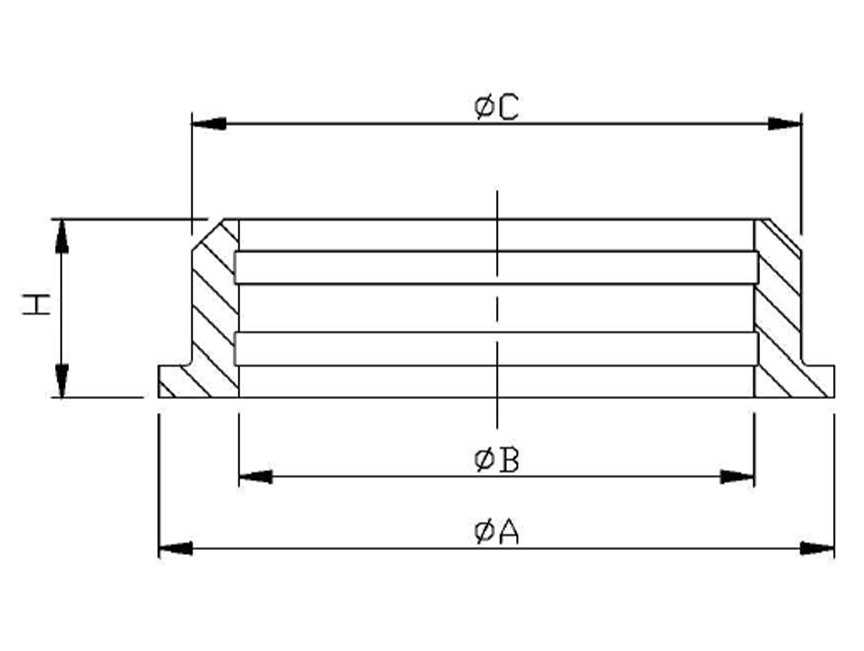

SIZE ØA ØB ØC H
1" 39.5 25.2 33.8 16
1.5" 53.5 38.2 47.5 18
2" 67.5 51 61.5 20
2.5" 83.5 63.7 75.5 22
3" 95.5 76.4 87.5 24
4" 124 102 115 29
