DANSK-14W Welding Liner

Welding liner make up one side of a union and can be used with a welding male and a gasket of choice. During installation, the round nut presses the welding liner and welding male together, compressing the gasket to form a reliable seal.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"-4"

Material: SS304, SS316L

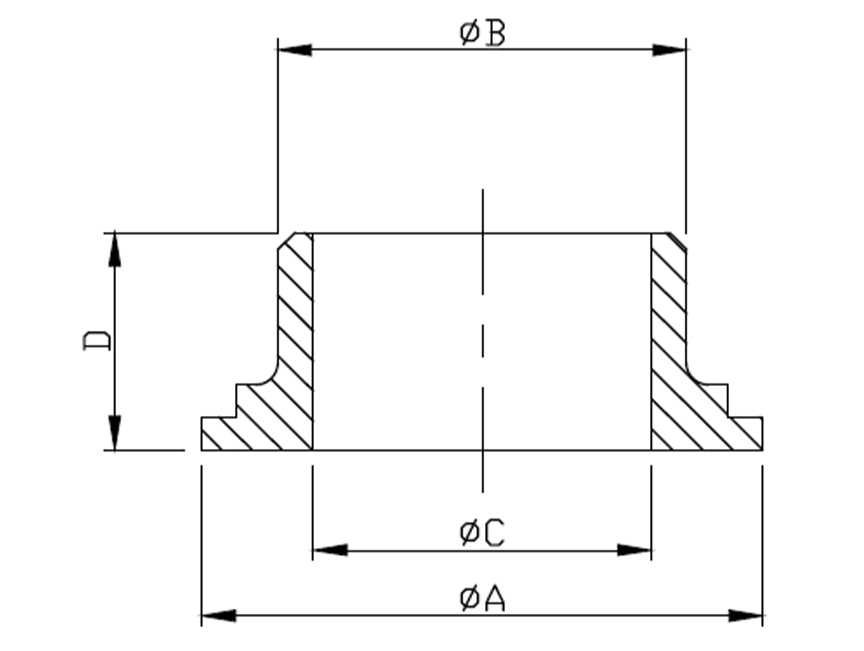

Specifications

UNIT: mm

SIZE ØA ØB ØC D
1" 40 28.6 22.5 16
1.2" 48 35 29 16
1.5" 54 41.3 35 18
2" 68 54 47.5 20
2.5" 84 66.7 60 22
3" 96 79.4 72.5 24
4" 123.5 110 97.5 29
