DANSK-15(SK) Expanding Welding Male Part

The welding male part makes up one side of a union. During installation, the round nut presses the welding male and welding liner together, compressing the gasket to form a reliable and tight seal.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"-4"

Material: SS304, SS316L

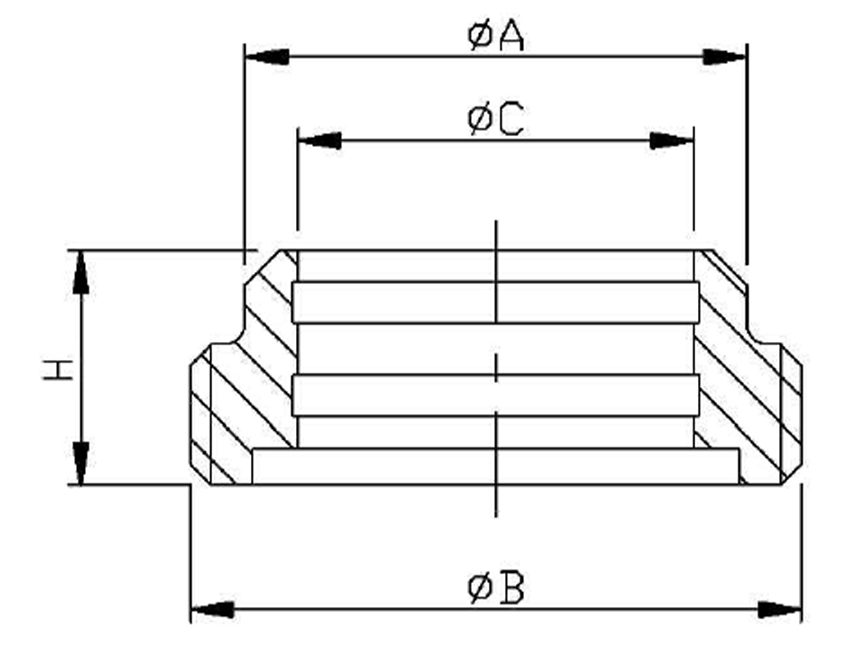

Specifications

UNIT: mm

SIZE ØA ØB ØC H
1" 34 RD44x1/6 25.2 20
1.5" 47.5 RD58x1/6 38.2 22
2" 61.5 RD72x1/6 51.1 24
2.5" 75.5 RD88x1/6 63.7 26
3" 87.5 RD100x1/6 76.4 28
4" 115 RD130x1/6 102 34
