DANSK-14(SK) Welding Liner

Welding liner make up one side of a union and can be used with a welding male and a gasket of choice. During installation, the round nut presses the welding liner and welding male together, compressing the gasket to form a reliable seal.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"-4"

Material: SS304, SS316L

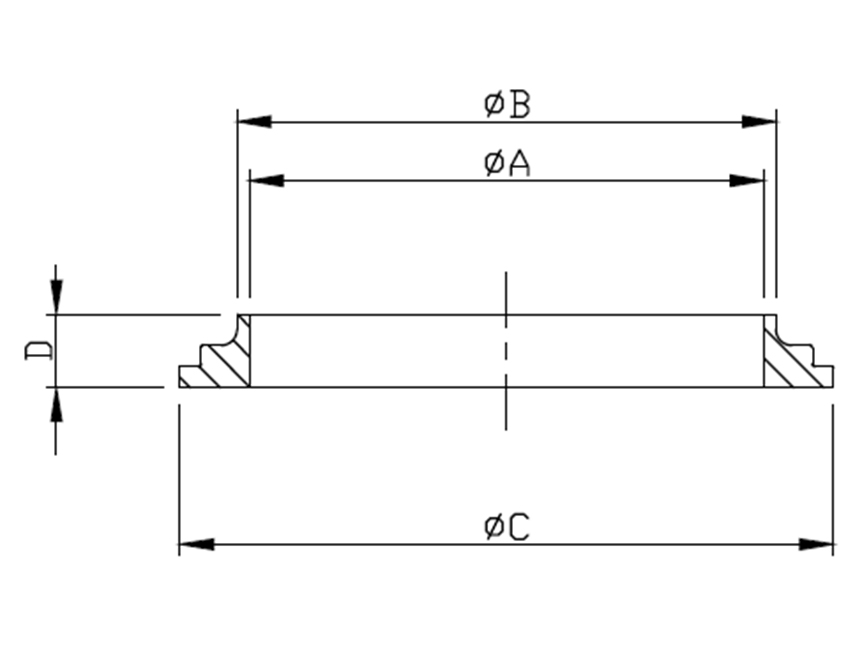

Specifications

UNIT: mm

SIZE ØA ØB ØC D
1" 22.5 25.6 39.5 11
1.5 35.5 38.5 53.5 11
2" 48.6 51.5 67.5 11
2.5" 60.3 63.9 83.5 12
3" 72.9 76.6 95.7 12
4" 97.6 102.3 124 12
