DANSK-15(SA) Welding Male Part

The welding male part makes up one side of a union. During installation, the round nut presses the welding male and welding liner together, compressing the gasket to form a reliable and tight seal.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size: 1"–6"

Material: SS304, SS316L

Specifications

UNIT: mm

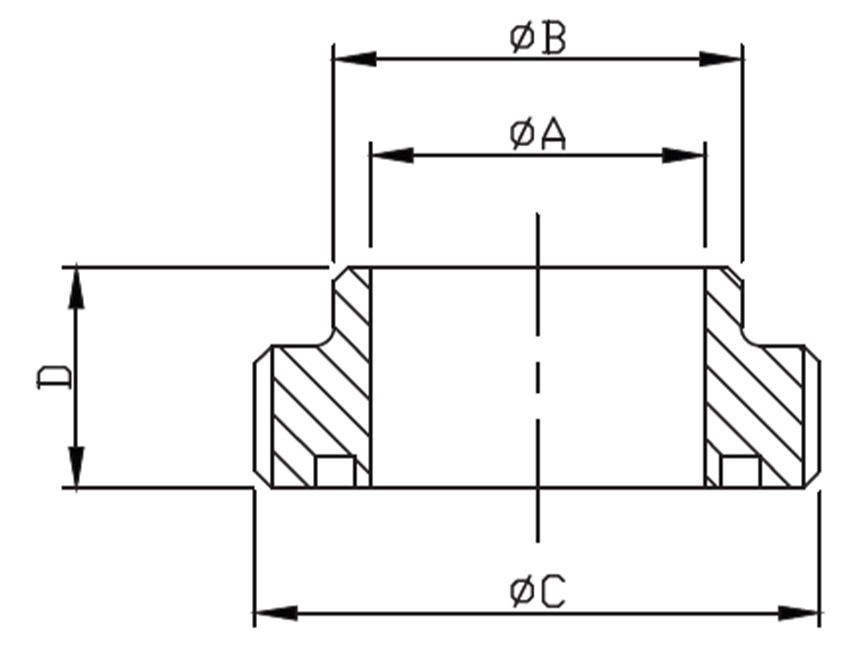

SIZE ØA ØB ØC D
1" 22.4 28.6 RD44x1/6 20
1.2" 28.5 35 RD52x1/6 20
1.5" 35 41.3 RD58x1/6 22
2" 47 55 RD72x1/6 24
2.5" 60 67 RD88x1/6 26
3" 72.2 80 RD100x1/6 28
4" 97.5 104.8 RD130x1/4 34
5" 123 135 RD160x1/4 36
6" 148 160 RD175x1/4 37
