Equal Clamp Tee

Product Model: 3A-7MP

The Equal Clamp Tee features a Tri-Clamp connection for quick installation and easy maintenance. It is designed for fluid distribution and merging in sanitary tubing systems for food, beverage, dairy, and other high-purity applications.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size Range: 1/2" ~ 6"

Material: SUS304 / SUS316L Stainless Steel

Connection Type: Tri-Clamp

Standard Compliance: 3-A Sanitary Standard

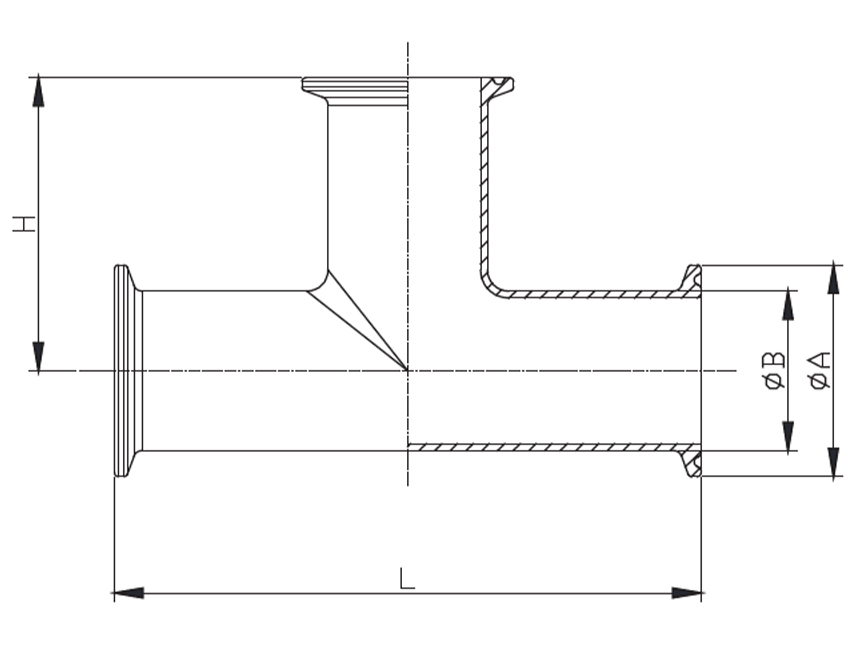

Specifications

UNIT: mm

SIZE ØA ØB L H
1/2" 25.4 12.7 82.6 41.3
1/2" 25.4 12.7 133.4 66.7
3/4" 25.4 19.05 82.6 41.3
3/4" 25.4 19.05 133.4 66.7
1" 50.5 25.4 120.6 60.3
1.5" 50.5 38.1 140 70
2" 64 50.8 177.8 88.9
2.5" 77.5 63.5 177.8 88.9
3" 91 76.2 190.6 95.3
4" 119 101.6 228.8 114.4
6" 166.8 152.4 330.2 165.1
