Reducing Long Butt-Weld Tee

Product Model: 3A-7RW

The Reducing Butt-Weld Tee provides a smooth transition between different tube sizes with reliable welded performance. It is suitable for sanitary tubing systems requiring high cleanliness and durability.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size Range: 3/4" × 1/2" – 6" × 4"

Material: SUS304 / SUS316L

Connection Type: Butt-Weld

Standard Compliance: 3-A Sanitary Standard

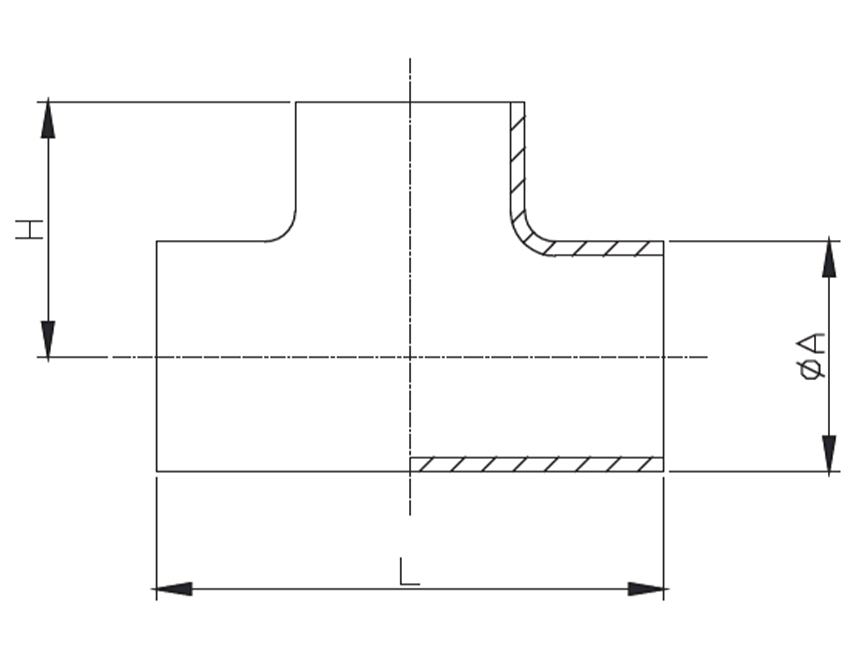

Specifications

UNIT: mm

SIZE ØA ØB L H
3/4"x1/2" 19.1 12.7 95.2 25.4
1"x1/2" 25.4 12.7 95.2 43.5
1"x3/4" 25.4 19.05 95.2 50.8
1.5"x1/2" 38.1 12.7 114.4 56.4
1.5"x3/4" 38.1 19.05 114.4 48.5
1.5"x1" 38.1 25.4 114.4 54
2"x1/2" 50.8 12.7 152.4 74.6
2"x3/4" 50.8 19.05 152.4 60.3
2"x1" 50.8 25.4 152.4 60.3
2"x1.5" 50.8 38.1 152.4 63.5
2.5"x1" 63.5 25.4 152.4 69.9
2.5"x1.5" 63.5 38.1 152.4 69.9
2.5"x2" 63.5 50.8 152.4 76.2
3"x1" 76.2 25.4 165.2 76.2
3"x1.5" 76.2 38.1 165.2 85.7
3"x2" 76.2 50.8 165.2 89.4
3"x2.5" 76.2 63.5 165.2 89.4
4"x1" 101.6 25.4 196.8 101.6
4"x1.5" 101.6 38.1 196.8 101.6
4"x2" 101.6 50.8 196.8 101.6
4"x2.5" 101.6 63.5 196.8 94.2
4"x3" 101.6 76.2 196.8 95.3
6"x2" 152.4 50.8 254 120.7
6"x3" 152.4 76.2 254 123.8
6"x4" 152.4 101.6 254 120.7
