Equal Short Butt-Weld Tee

Product Model: 3A-7WWW

The Equal Butt-Weld Tee provides a strong and permanent welded connection with excellent sealing performance. Its smooth internal surface reduces fluid retention and supports high-purity sanitary applications.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size Range: 1/2" ~ 6"

Material: SUS304 / SUS316L

Connection Type: Butt-Weld

Standard Compliance: 3-A Sanitary Standard

Specifications

UNIT: mm

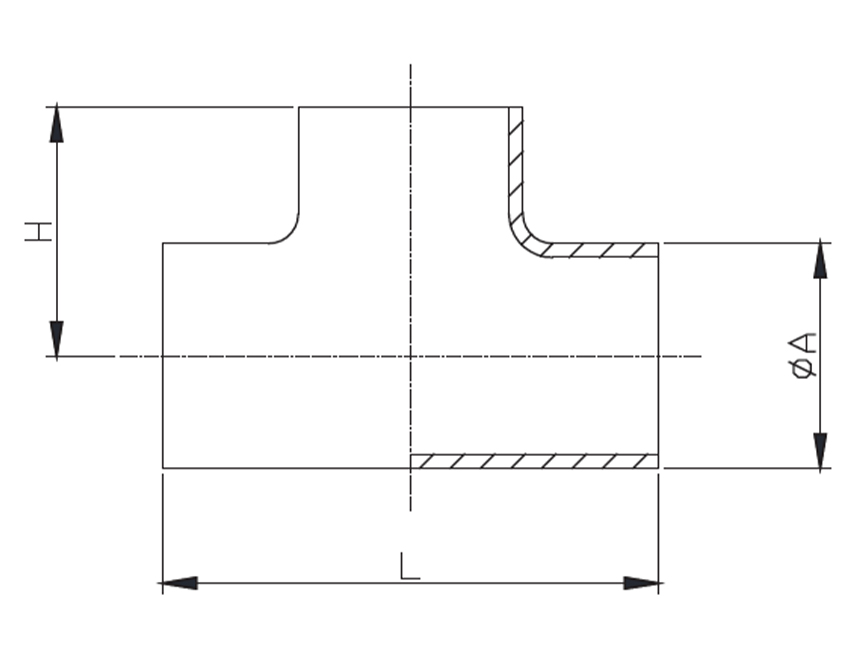

SIZE ØA L H
1/2" 12.7 57.2 28.6
3/4" 19.1 57.2 28.6
1" 25.4 57.2 28.6
1.2" 31.8 76.2 38.1
1.5" 38.1 84.2 42.1
2" 50.8 104.8 52.4
2.5" 63.5 119 59.5
3" 76.2 131.8 65.9
4" 101.6 174.4 87.3
6" 152.4 254 127
