Equal Long Butt-Weld Tee

Product Model: 3A-7W

The Equal Butt-Weld Tee provides a strong and permanent welded connection with excellent sealing performance. Its smooth internal surface reduces fluid retention and supports high-purity sanitary applications.

  1. Inquiry
  2. Back
  3. Next
Details

Size Range: 1/2" ~ 6"

Material: SUS304 / SUS316L

Connection Type: Butt-Weld

Standard Compliance: 3-A Sanitary Standard

Specifications

UNIT: mm

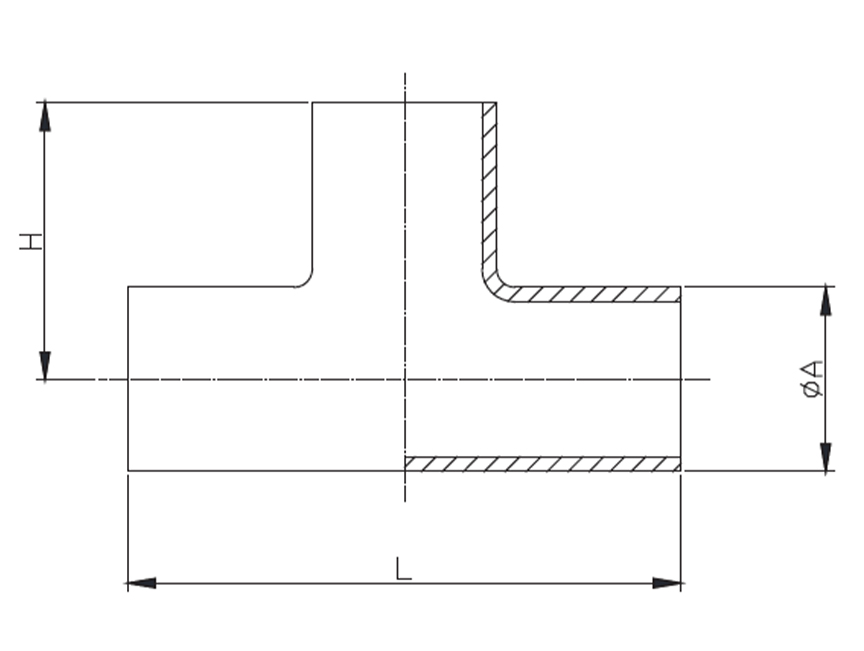

SIZE ØA L H
1/2" 12.7 107.9 53.9
3/4" 19.05 107.9 53.9
1" 25.4 95.3 47.6
1.5" 38.1 114.3 57.2
2" 50.8 152.4 76.2
2.5" 63.5 152.4 76.2
3" 76.2 165.1 82.6
4" 101.6 196.9 98.5
6" 152.4 285.8 142.9
