Reducing Clamp Tee

Product Model: 3A-7RMP

The Equal Clamp Tee features a Tri-Clamp connection for quick installation and easy maintenance. It is designed for fluid distribution and merging in sanitary tubing systems for food, beverage, dairy, and other high-purity applications.

  1. Inquiry
  2. Back
  3. Prev
Details

Size Range: 1" × 1/2" ~ 4" × 3"

Material: SUS304 / SUS316L Stainless Steel

Connection Type: Tri-Clamp

Standard Compliance: 3-A Sanitary Standard

Specifications

UNIT: mm

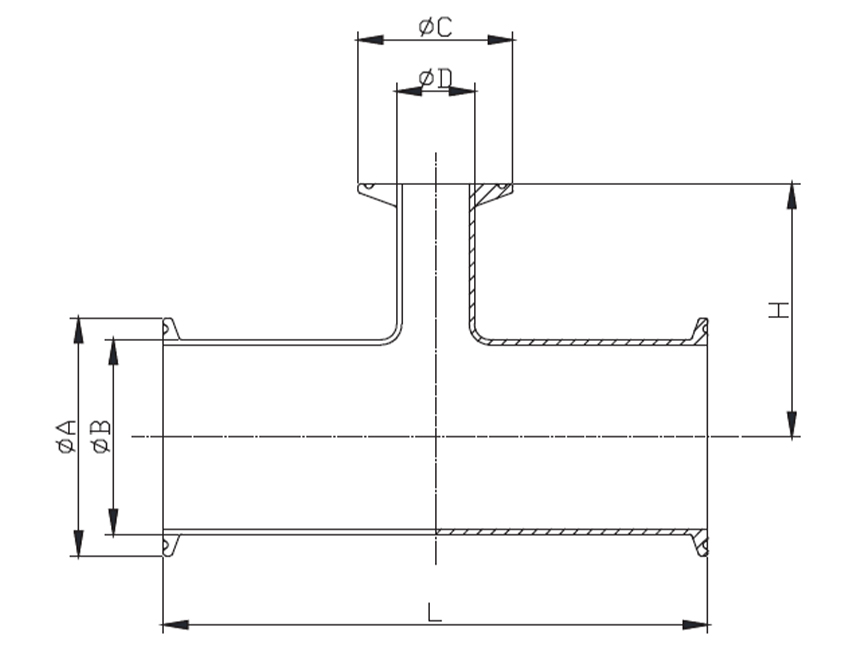

SIZE ØA ØB ØC ØD L H
1"x1/2" 50.5 25.4 25.2 12.7 120.6 60.2
1"x3/4" 50.5 25.4 25.2 19.05 120.6 60.2
1.5"x1/2" 50.5 38.1 25.2 12.7 139.8 66.8
1.5"x3/4" 50.5 38.1 25.2 19.05 139.8 66.8
1.5"x1" 50.5 38.1 50.5 25.4 139.8 66.8
2"x1/2" 64 50.8 25.2 12.7 177.8 73
2"x3/4" 64 50.8 25.2 19.05 177.8 73
2"x1" 64 50.8 50.5 25.4 177.8 73
2"x1.5" 64 50.8 50.5 38.1 177.8 76.2
2"x1/2" 77.5 63.5 25.2 12.7 177.8 83
2.5"x1" 77.5 63.5 50.5 25.4 177.8 83
2.5"x1.5" 77.5 63.5 50.5 38.1 177.8 83
2.5"x2" 77.5 63.5 64 50.8 177.8 95.2
3"x1" 91 76.2 50.5 25.4 190.6 90.5
3"x1.5" 91 76.2 50.5 38.1 190.6 89
3"x2" 91 76.2 64 50.8 190.6 101.6
3"x2.5" 91 76.2 77.5 63.5 190.6 95.4
4"x1.5" 119 101.6 50.5 38.1 228.6 114.3
4"x2" 119 101.6 64 50.8 228.6 114.3
4"x2.5" 119 101.6 77.5 63.5 228.6 107.9
4"x3" 119 101.6 91 76.2 228.6 107.9
