Reducing Short Butt-Weld Tee

Product Model: 3A-7RWWW

The Reducing Butt-Weld Tee provides a smooth transition between different tube sizes with reliable welded performance. It is suitable for sanitary tubing systems requiring high cleanliness and durability.

  1. Inquiry
  2. Back
  3. Prev
  4. Next
Details

Size Range: 1" × 1/2" ~ 6" × 4"

Material: SUS304 / SUS316L Stainless Steel

Connection Type: Butt-Weld

Standard Compliance: 3-A Sanitary Standard

Specifications

UNIT: mm

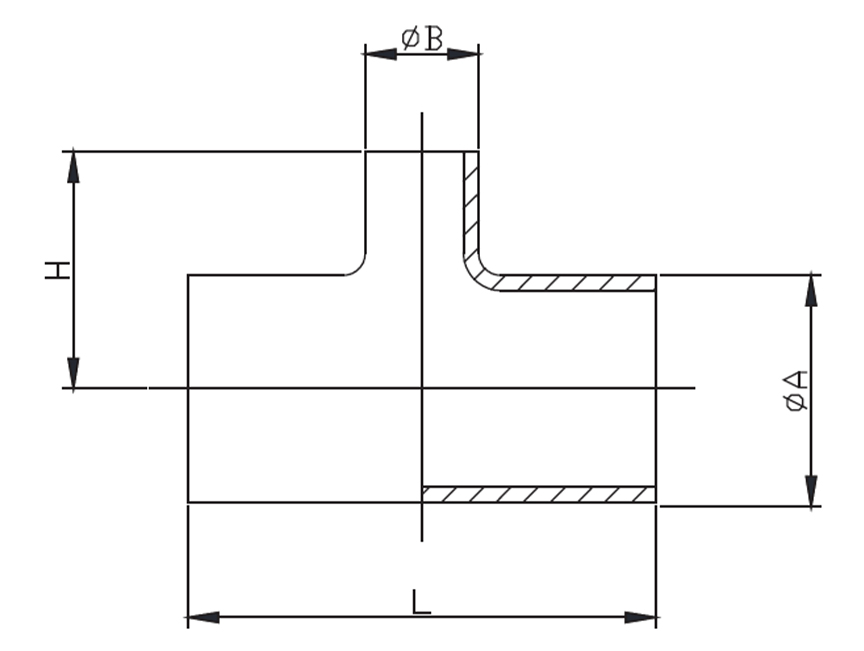

SIZE ØA ØB L H
1"x1/2" 25.4 12.7 57.5 28.3
1"x3/4" 25.4 19.05 57.5 28.3
1.5"x1/2" 38.1 12.7 84.1 35
1.5"x3/4" 38.1 19.05 84.1 34.5
1.5"x1" 38.1 25.4 84.1 34.9
2"x1" 50.8 25.4 104.8 41.6
2"x1.5" 50.8 38.1 104.8 48.4
2.5"x1" 63.5 25.4 119 47.6
2.5"x1.5" 63.5 38.1 119 51.7
2.5"x2" 63.5 50.8 119 58.1
3"x1" 76.2 25.4 132 54
3"x1.5" 76.2 38.1 132 62
3"x2" 76.2 50.8 132 65.4
3"x2.5" 76.2 63.5 132 67.4
4"x1" 101.6 25.4 174.6 66.7
4"x1.5" 101.6 38.1 174.6 73.8
4"x2" 101.6 50.8 174.6 77.8
4"x2.5" 101.6 63.5 174.6 78.6
4"x3" 101.6 76.2 174.6 78.6
6"x3" 152.4 76.2 254 120.7
6"x4" 152.4 101.6 254 123.8
